Lucas Laser Enclosures for Optical TablesFully enclosed optical table guard system on rails - Class 1 Enclosure for Class 4 Lasers - CE Certified to EN 60825-1 and ANSI Z136.1



The Lucas Laser Castle® is an Optical Table Top Enclosure for laser safety that fits onto rails located on an Optical Table

  • It is provided as a flat pack so that it can be built and installed by the customer.
  • The end panels are attached with magnets so that they can be easily removed for access.
  • The enclosure sits on rails that are attached to the optical table so that either of the inner or outer units can be slid back and forth for access.
  • Once correctly built it is fully compliant with the laser safety standards BS EN IEC 60825-1 making it a Class 1 Product for Class 4 Lasers
  • It is fitted with a dual channel Interlock® Control system with an LED warning sign.
  • Internal height from the table to the roof is 600mm
  • Standard sizes are 1.2 x 2m or 1.2 x 4m but custom sizes are available on request

Functionality Overview of the Concept of the Table top enclosure for optical tables

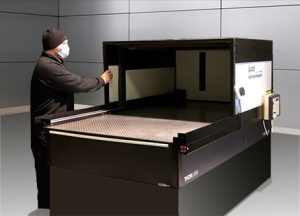

Optical table guard opened



Internal view of the Lucas optical table enclosure and a typical optical table

The Lucas enclosure is mounted on rails either side of the optical table using the table mount holes located on the extreme edges.  This means that that minimum table space is used. The internal view of the enclosure shows the two cable inlet ports designed to house laser cables and any other services required by the user.

The optical table shown above is a typical example of optical table suitable for the Lucas Laser enclosure.

For specific requirements contact Lasermet with the dimensions of the table.

Here is an overview video of the Lucas Optical table Guarding System

For longer and larger optical tables, the Lucas enclosure can be doubled up so that a mirror image of the enclosure shown above can be used in addition.

The following larger system is the Lucas 1.2 x 4m

The following ratings are for Lucas enclosure

PEL ratings:

Irradiated Area
PEL (T2) 100 s
4 mm²
37 MW/m²
2000 mm²
200 kW/m²
