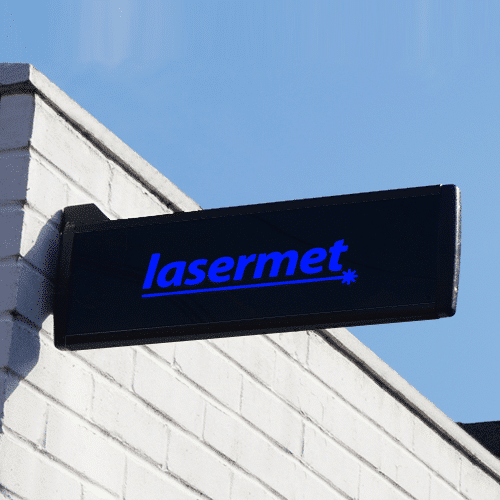

Weatherproof IP66 LED Ultra Signs
IP66 Weatherproof LED Signs for outdoor use
Lasermet’s Ultra Signs now come in an IP66-rated weatherproof version for use in outdoor environments. Seamless graphics with the backlit LED design set this sign apart from pixelated matrix LED displays.
- Weatherproof sign for outdoor use (IP66)
- Any message, graphics or language
- Single or dual message
- Low voltage 24VDC (48VDC optional)
- DALI Interface option
Description
The LED Ultra Sign is the professional IP66 rated LED sign for outside use. These bright LED signs are ideal for use in bad weather. UK manufactured, these dual-message, dual-colour, DALI compatible LED signs are low voltage 24VDC (48VDC option available on request).
It is IP66 rated to BS EN IEC 60529 which means that the sign is protected against powerful water jets and is dust-tight – ideal for use in the wind and rain. The high-brightness LEDs ensure the sign is readable in strong sunlight too.
Other options, to be specified when ordering, include auto or remote dimming and an on/off flashing capability and DALI compatible module options. DALI is the Digitally Addressable Lighting Interface standard used in the lighting industry.
Also a number of mounting bracket options are available for either single facing or dual facing signs, in addition to direct wall mounting.
SPECIFICATIONS
| Size | 580 x 178 x 26.8 mm |
| Weight | 2.8 kg |
| Operating Voltage | 18 – 26 VDC |
| Compliance | BS EN 60529:1992 + A2:2013 – IP66 BS EN 60598-1:2008 EN 62471:2008 EN 55015:2013 +A1:2015 EN 61547:2009 Low Voltage Directive 2014/35/EU EMC Directive 2014/30/EU CE Directive 2006/42/EC |
Mounting Options
