Laser Blocking Window Blinds for Medical Environments

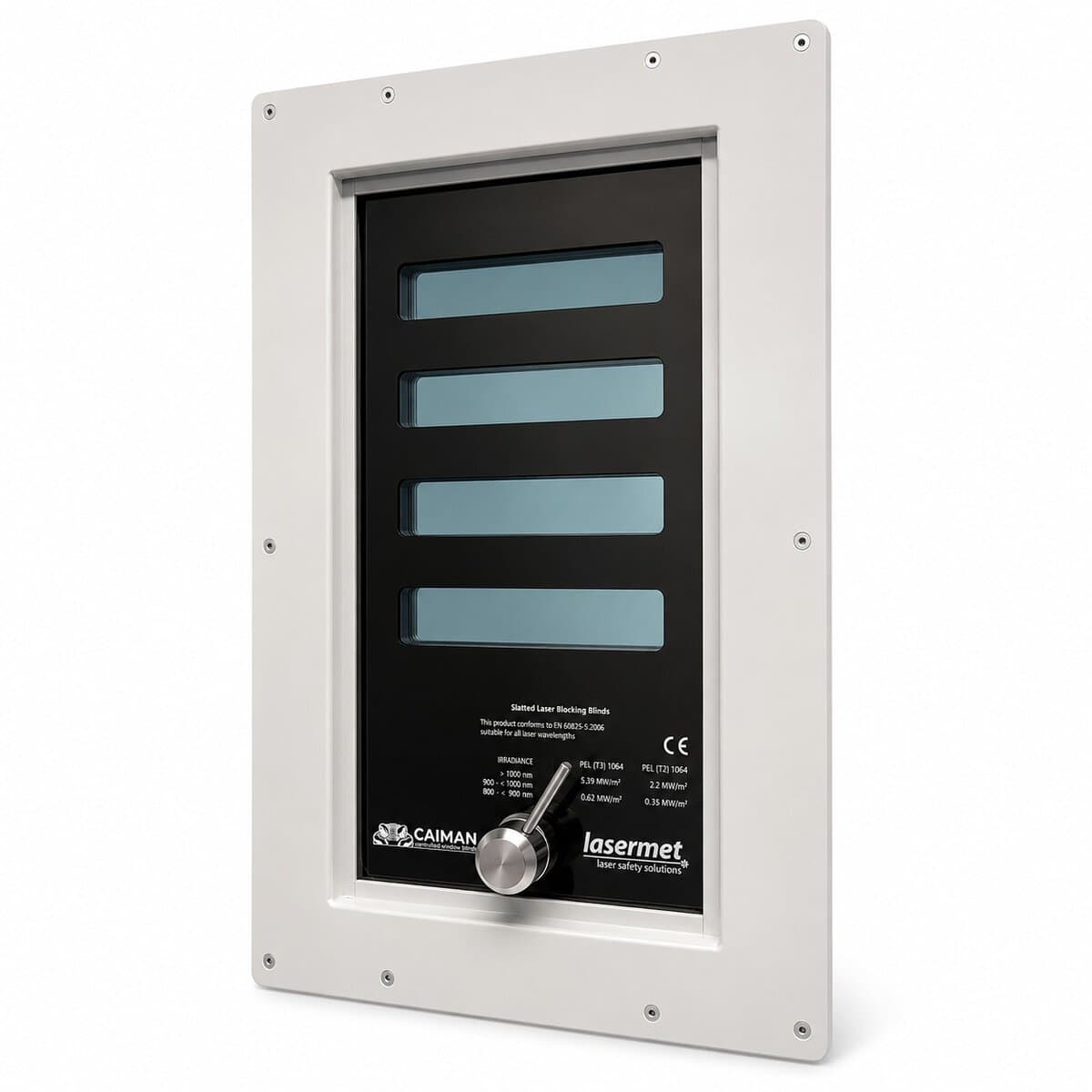

The slats of the Caiman Window are made of a special polycarbonate composite material with laser-blocking properties, specifically designed to shield against stray laser beams while maintaining visibility. This makes it ideal for environments where uncontrolled laser reflections could pose a risk.

Certified Laser Protection

The Caiman blinds are rigorously tested and comply with IEC 60825-4 Safety of Laser Products Part 4: Laser Guards. These blinds effectively block all medical, industrial, and research lasers, ensuring a safe environment for both staff and patients. Designed to shield against stray laser emissions, the Caiman blinds protect individuals outside the laser-controlled area while allowing controlled monitoring inside.

Dual-Mode Visibility

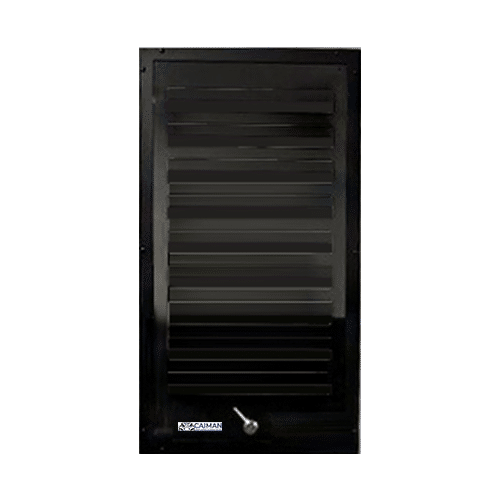

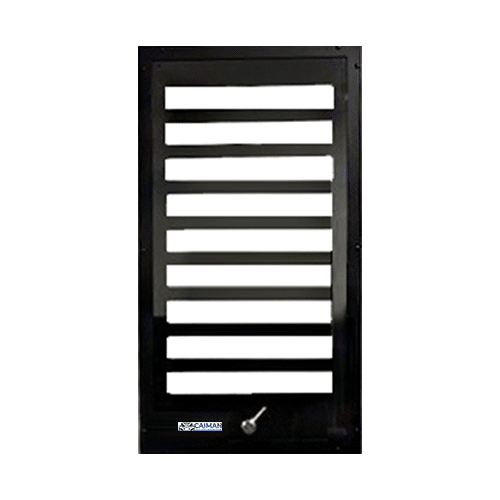

Caiman Laser Safety Window Blinds offer a unique dual visibility mode, allowing users to switch between full protection and controlled transparency. A simple lever mechanism enables users to adjust the slats effortlessly, transitioning between full visibility and complete laser blockage. This is particularly useful for monitoring laboratory operations without exposing personnel to hazardous laser beams.

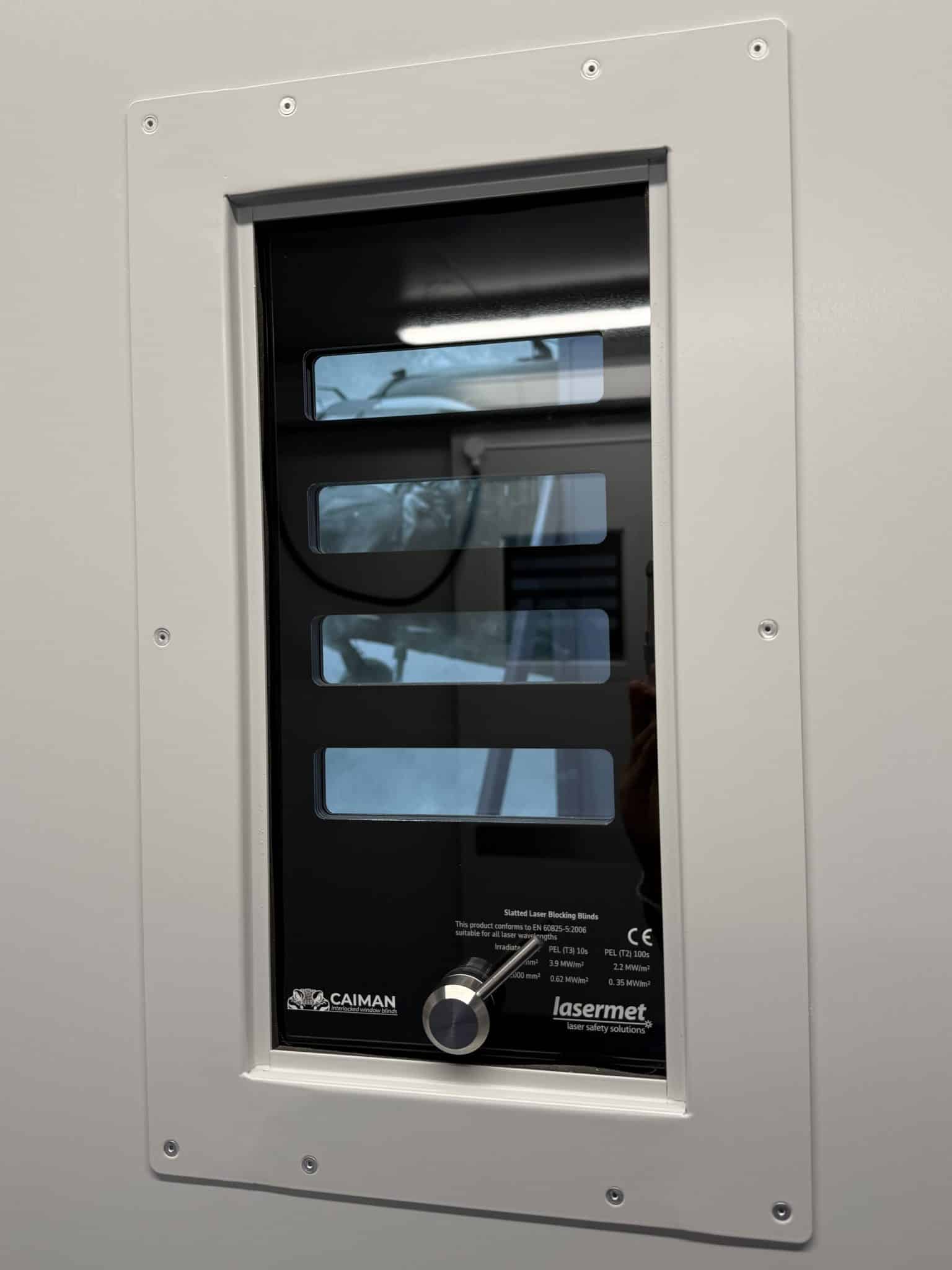

The slats ensure that when in the open position, external observers can safely view inside the laser-controlled area while still being shielded from stray laser reflections. This feature is essential for environments where continuous observation of laser operations is required without compromising safety.

Integrating Caiman Laser Safety Window Blinds into your facility not only elevates safety standards but also improves operational efficiency. With clear visibility when needed and instant laser blocking capabilities, these blinds eliminate the need for cumbersome temporary safety shields or complete isolation of laser-controlled areas.

Window Fit Options

The unit can be installed as a standard fit within the door or window aperture or it can be fitted as a flush fit where the surfaces of the unit match those of the aperture edges. It can also be integrated with some Lasermet Cabins and Enclosures.

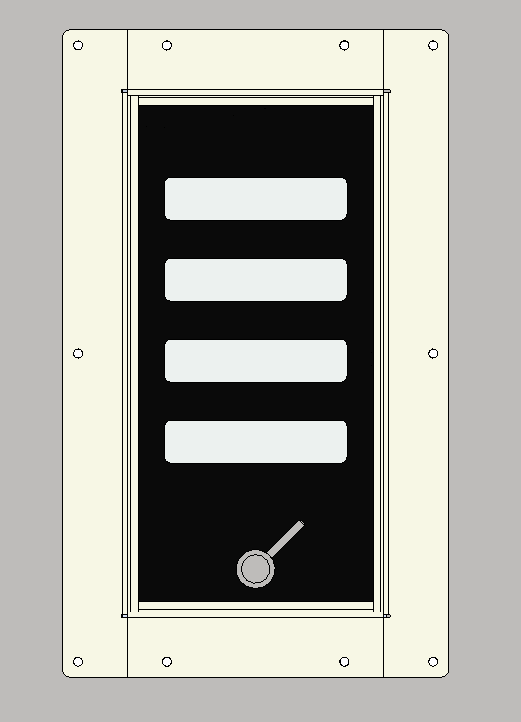

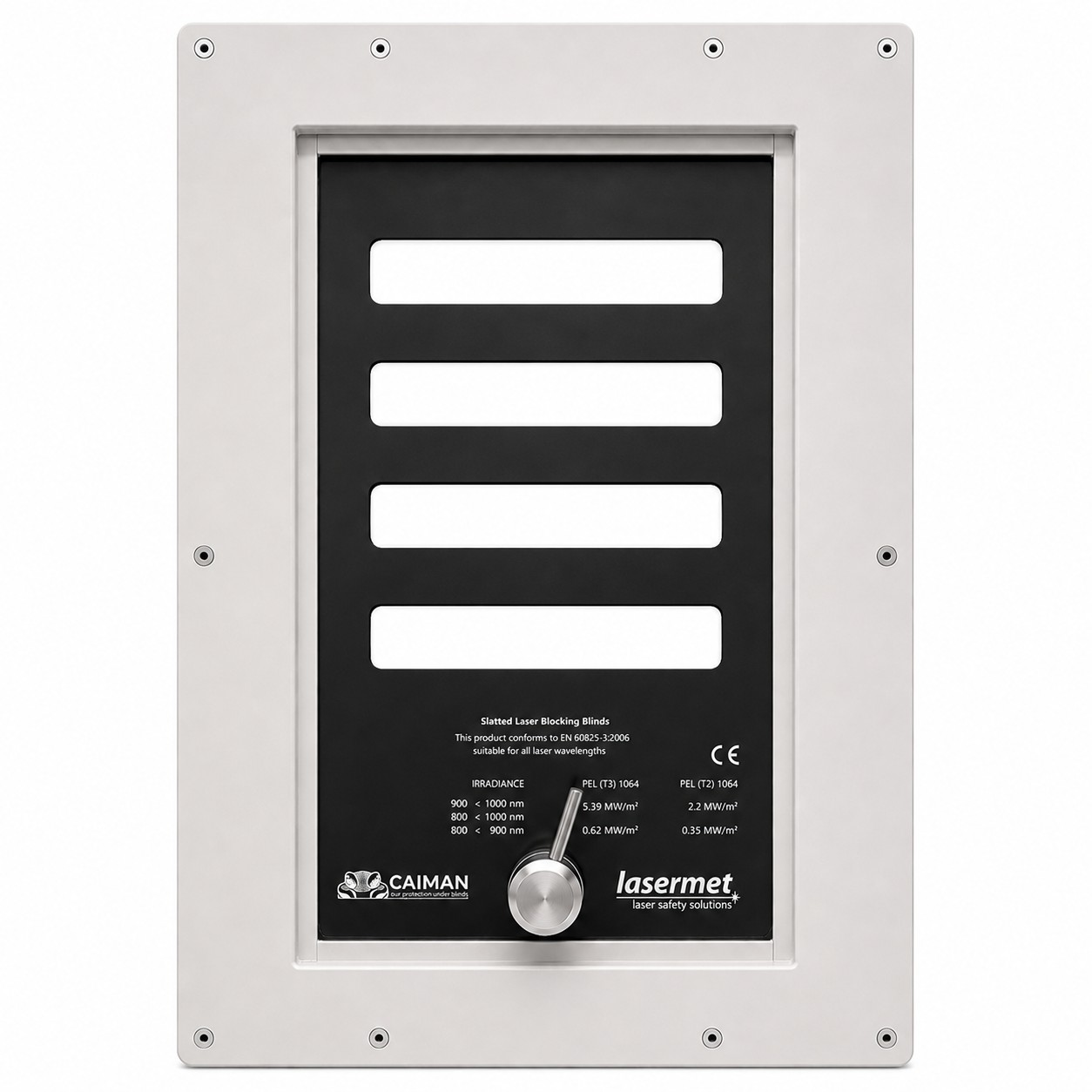

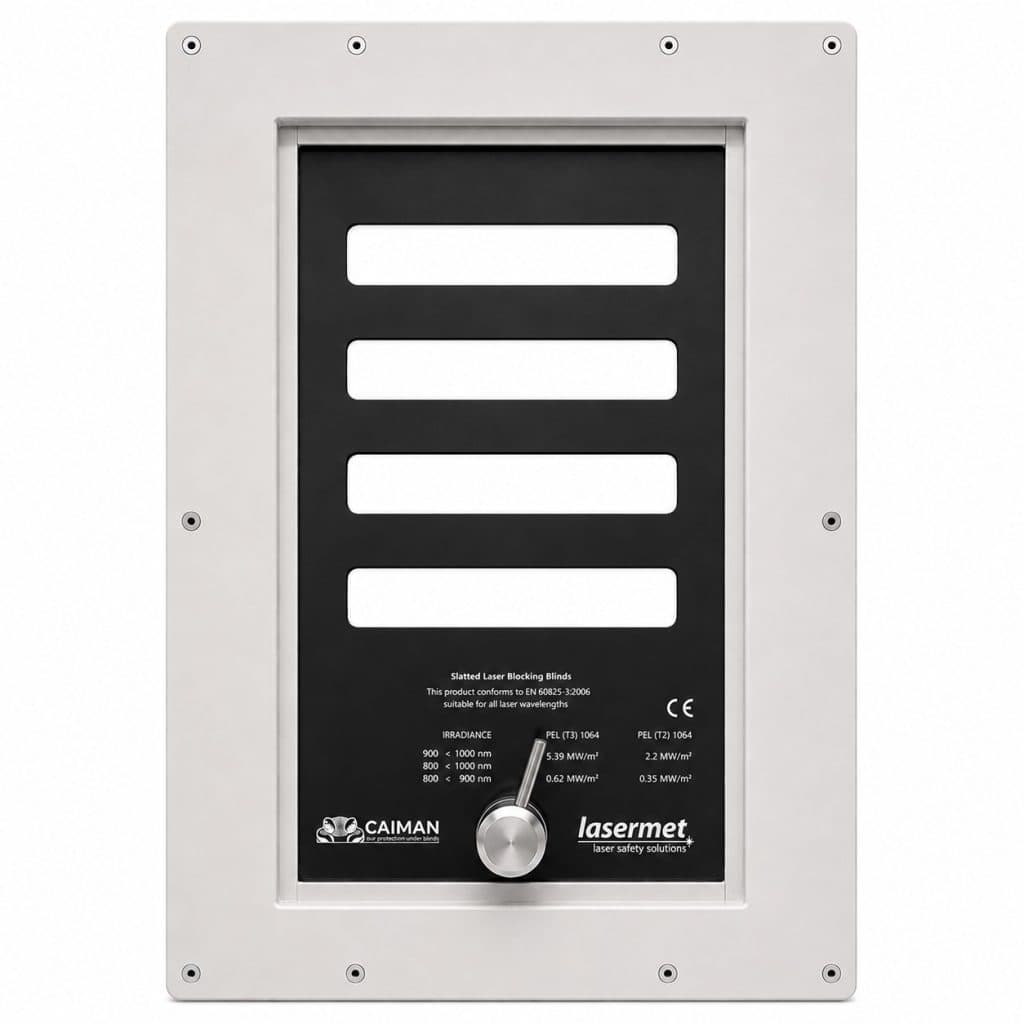

STANDARD FIT

Eliminates the need for unhygienic metal housing and allows a tight seal between the glass and the beading. Positioned either centrally across the door thickness or flush on one side with a single bead.

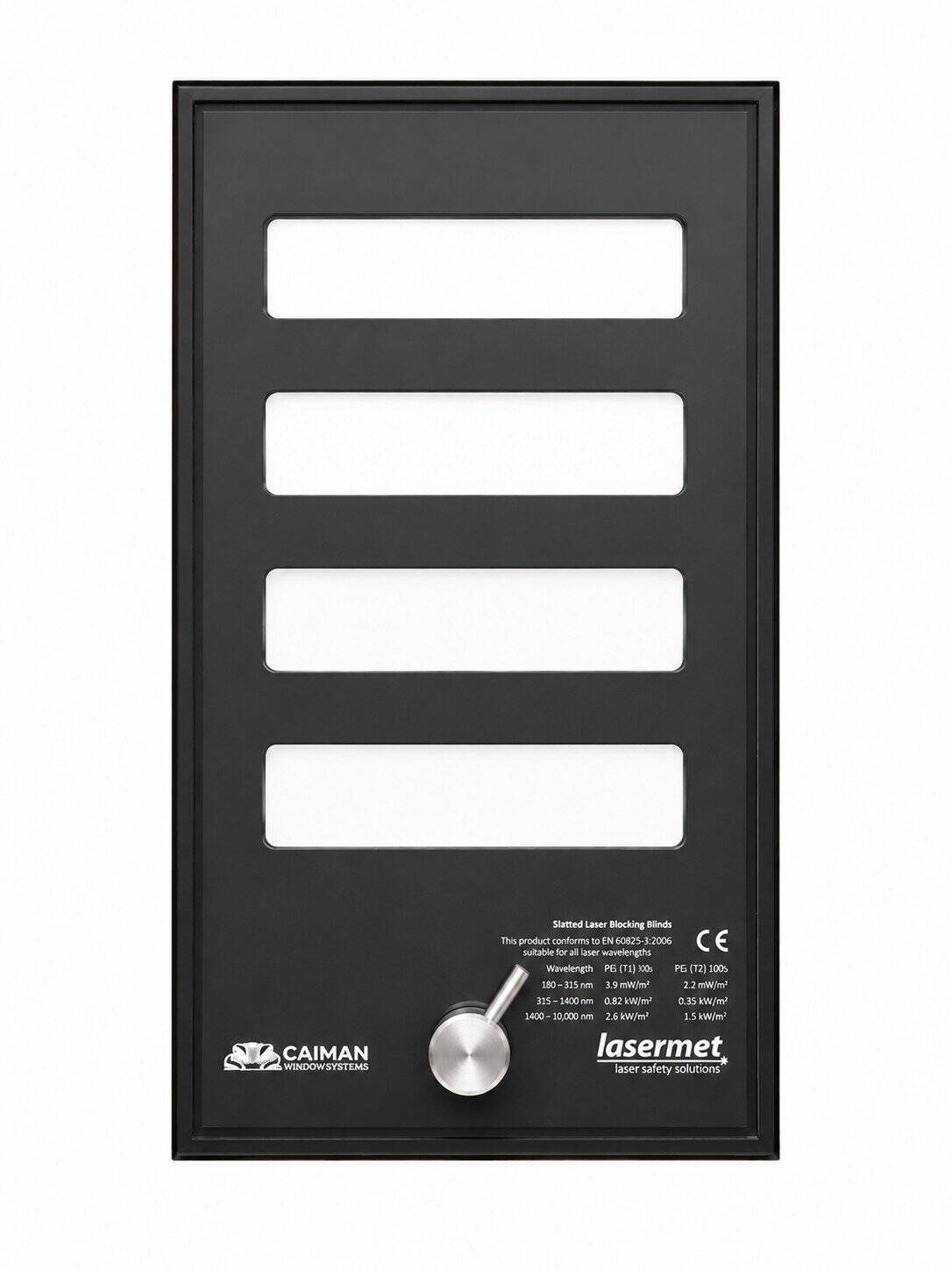

FLUSH FIT

Designed and manufactured to suit the exact thickness of the housing. Sealed with silicone mastic, providing a highly hygienic detail with no crevices or ledges for dirt or bacteria to harbour.

Ordering Options

Glass Options

• X-ray proof – lead equivalents up to 3.3mm thick
• Fire-glass – 30 and 60 minute, insulated and non-insulated
• Outer glass panes available in toughened or laminated glass to comply with BS 6262

Handle Options

• Standard lever

Dimensions

• Nominal thickness for Flush Fit model to suit customer door thickness.
• Standard widths and heights for all models are below. (w x h)

Note that the colours (red and blue) in the drawing are for representation purposes only to illustrate the overlapping panels. The actual colour is black.

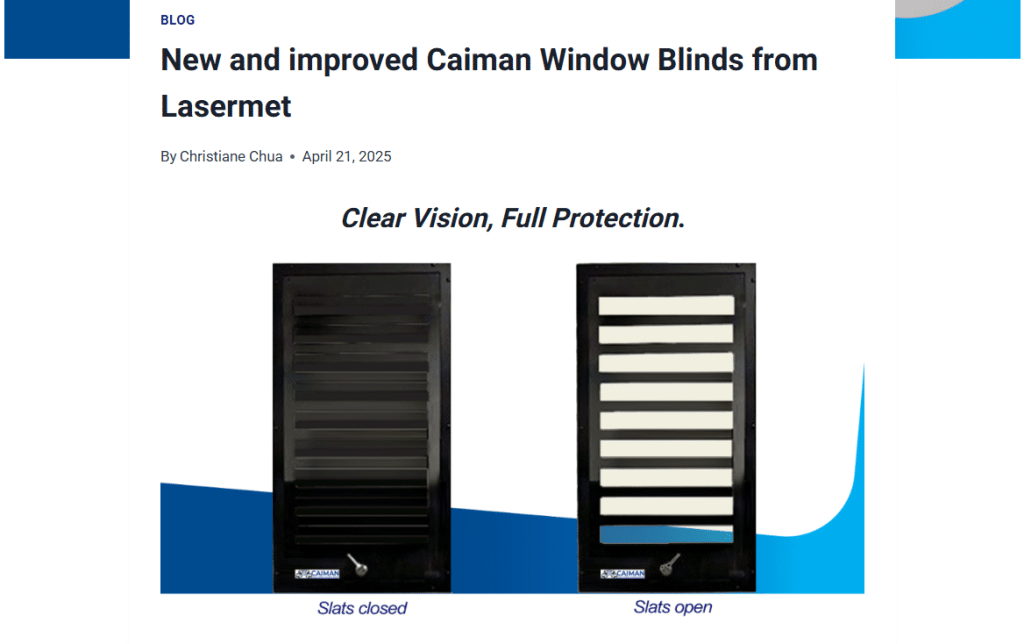

Read New and improved Caiman Window Blinds from Lasermet for more information.
