LED Mini Signs
£225.06 – £255.06
Small LED Laser Warning Signs
These compact backlit LED signs are ideal for use in commercial, retail, or industrial premises. Custom messages are available to suit a variety of needs. Also available in single message or dual message options.
- Environmentally friendly, low power consumption (3.6W)
- Available in either one-way or two-way options
- Expected lifetime of 50,000 hours
- No maintenance during their operational life
- Automatic or manual switching options
Description
Secret-when-lit LED Signs with Bespoke Messages
The compact LED Mini Signs can be tailored with custom-designed wording and symbols to meet specific customer requirements. Customers have the flexibility to outline or personalize the design to suit their needs. Additionally, the device can be equipped with a switchable feature, allowing for easy adjustment as required
Single message options are backlit yellow, and dual-message signs are green and red. Other colours may be available upon request.

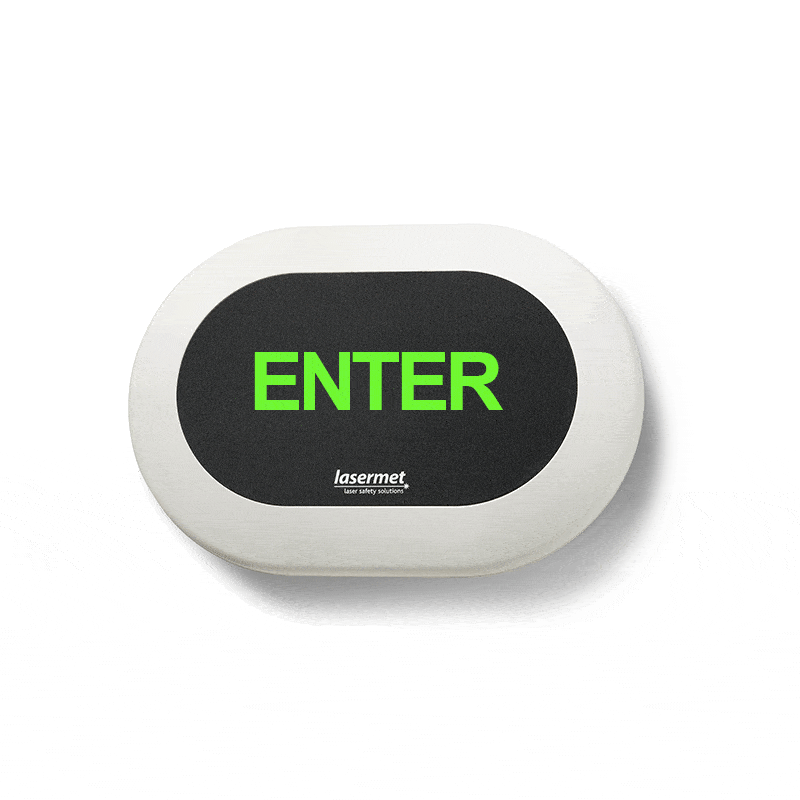

The 2-Way LED Mini Sign remains blank “secret” until activated. Once lit, it displays a message in green (safe) and red (warning), such as in the photo above. This ensures the sign stays discreet until needed, with clear, color-coded messages for different states.
The 1-Way LED Mini Sign remains blank “secret” until activated. Once lit, it displays a message in amber(notice), such as in the photo above. This ensures the sign stays discreet until needed.
Specifications
| Voltage | 24VDC |
| Power Consumption | 150mA (3.6W) |
| Weight | 160g |
| Dimensions | 160w x 108h x 38.5d mm |
‘LASER HAZARD’ SIGNS
‘ROOM IN USE’ SIGNS
‘LAB IN USE’ SIGNS
‘OCCUPIED’ SIGNS
‘DO NOT ENTER’ SIGNS
‘NO ENTRY’ SIGNS
| Part Number | Description | Colours Available |
|---|---|---|
| LEDS-1WB | 1-way Sign Without Overlay (Custom message) |  blue |
| LEDS-1WY | 1-way Sign Without Overlay (Custom message) |  yellow |
| LEDS-2WRG | 2-way Sign Without Overlay (Custom message) |  red/green |
| LEDS-2W-RIU/RIP | Room In Use / Room Available | red/green |
| LEDS-1WY-GR | X-Ray Warning (German) ‘Gevaar Röntgen’ | yellow |
| LEDS-2W-GLA | Laser Warning (German) ‘Gevaar Laser Aan’ | red/green |
| LEDS-1W-NWG-J | You are not wearing goggles (Japan) |  white  red blue yellow  green |
| LEDS-2W-XR-J | X-Ray Warning (Japan) | red/green |
| LEDS-L-1WY | Laser Warning | yellow |
| LEDS-L-2W | Laser Warning | red/green |
| LEDS-L-1W-G | Laser Warning (German) ‘Achtung Laser An’ | yellow |
| LEDS-L-2W-G | Laser Warning (German) | red/green |

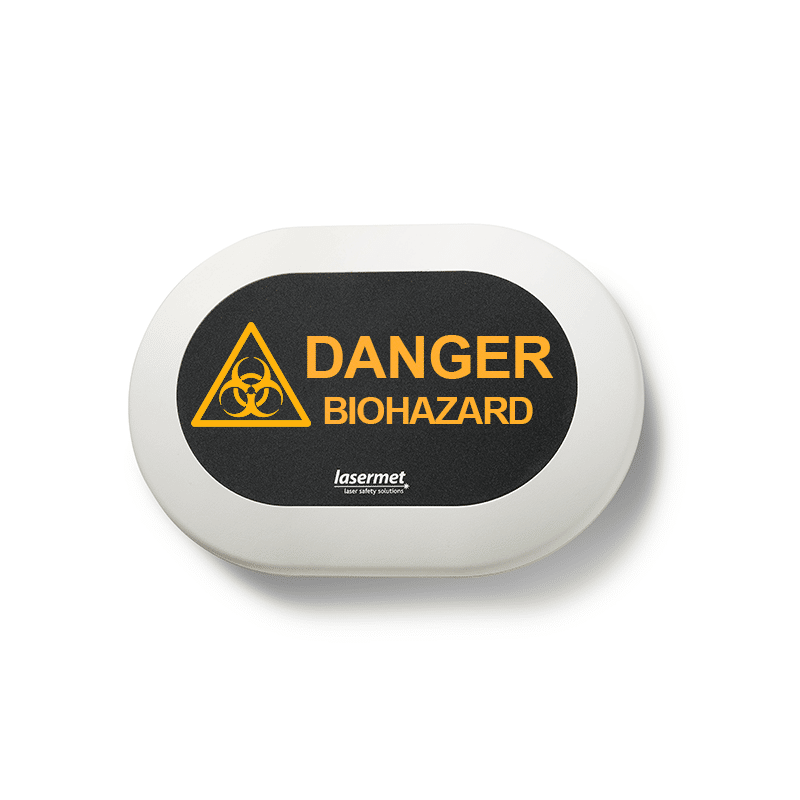

| LEDS-BH-1WY | Biohazard | white red blue yellow green |
| LEDS-BH-2W | Biohazard | red/green |
| LEDS-NE-1WR | No Entry | red |

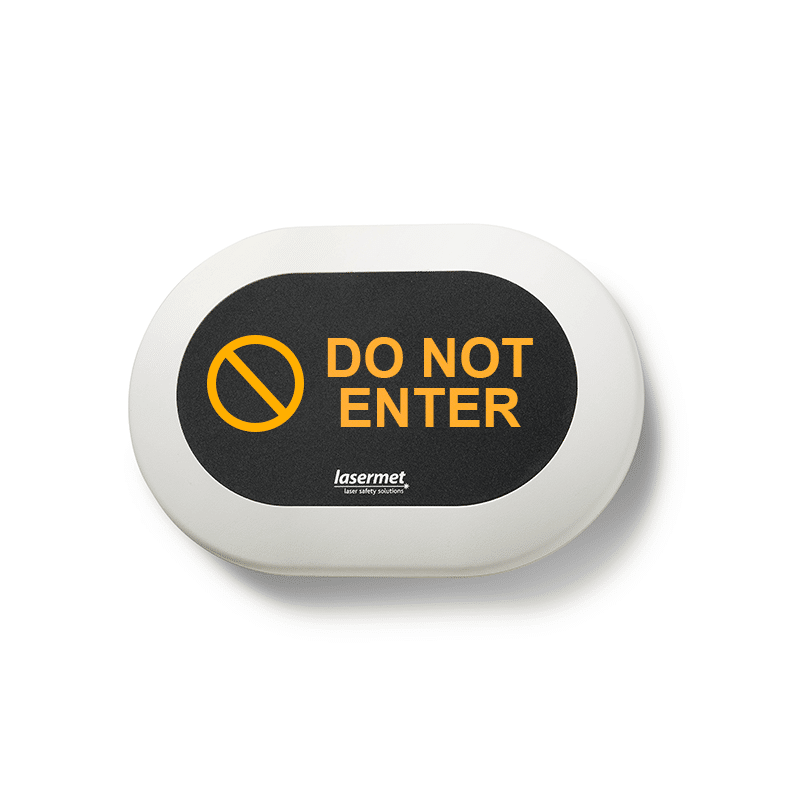

| LEDS-DNE-1WY | Do Not Enter | yellow |
| LEDS-DNE-2W | Do Not Enter | red/green |
| LEDS-DNEM-2W | Please Enter / Do Not Enter with ‘walking man’ symbol | red/green |
| LEDS-IB-1WY | LED Ion Beam | yellow |
| LEDS-IB-2W | LED Ion Beam | red/green |
| LEDS-IGR-1WY | LED Ionizing Radiation | yellow |
| LEDS-IGR-2W | LED Ionizing Radiation | red/green |
| LEDS-LIU-1WY | Lab In Use | yellow |
| LEDS-LIU-2W | Lab In Use | red/green |
| LEDS-LCA-1WY | Laser Controlled Area | yellow |
| LEDS-LOP-1WR | Laser Operational | red |
| LEDS-LPO-1WY | Laser Power On | yellow |
| LEDS-MH-1WY | Magnetic Field | yellow |
| LEDS-MH-2W | Magnetic Field | red/green |
| LEDS-NWG-1WB | `You are not wearing goggles` (static) | white red blue yellow green |
| LEDS-NWG-1WB-FL | `You are not wearing goggles` (flashing) | blue |
| LEDS-OC-1WY | Occupied | yellow |
| LEDS-OC-2W | Occupied | red/green |
| LEDS-RIU-1WY | Room In Use | yellow |
| LEDS-RIU-2W | Room In Use | red/green |
| LEDS-RIU/RIP | Room In Use / Room Available | red/green |
| LEDS-XR-1WY | X-Ray Warning | yellow |
| LEDS-XR-2W | X-Ray Warning | red/green |
| LEDS-XR-1W-G | X-Ray Warning (German) ‘Achtung! Röntgenstrahlung’ | yellow |
| LEDS-XR-2W-G | X-Ray Warning (German) | red/green |
Part number may vary depending on the colours chosen.
Power Supply and Switch for Signs
Lasermet provide a 24V DC Power Supply and Switch for manual operation of the switching messages.
It serves dual purposes as a manual switch and power supply unit.
Additional information
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Part Number | LEDS-2W-RIU/RIP, LEDS-BH-1WY, LEDS-BH-2W, LEDS-DNE-1WY, LEDS-DNE-2W, LEDS-DNEM-2W, LEDS-IB-1WY, LEDS-IB-2W, LEDS-LIU-1WY, LEDS-LIU-2W, LEDS-MH-1WY, LEDS-MH-2W, LEDS-NE-1WR, LEDS-OC-1WY, LEDS-OC-2W, LEDS-RIU-1WY, LEDS-RIU-2W |
