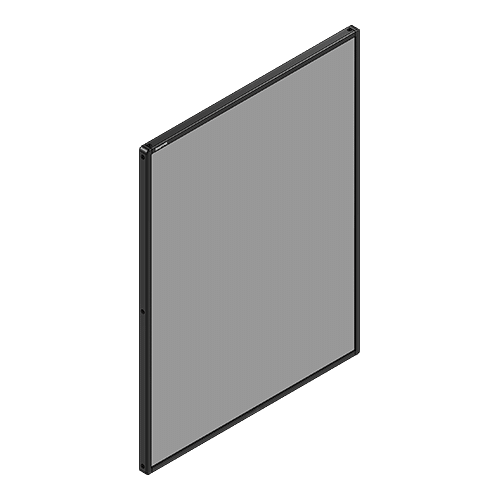

Glaser Castle Window
Passive Laser Safety Window
Glaser Castle Window enables a person to see inside a laser enclosure while being protected from laser radiation, providing maximum visibility and protection with minimum inconvenience.
Description
Passive Laser Filter Safety Window
Glaser Castle Window is a passive laser safety window that can be integrated to Lasermet’s Laser Castle or any appropriate sized laser safety enclosure.
These passive laser safety windows protect people outside a laser enclosure from laser radiation or stray laser beams while simultaneously allowing a person to view inside a laser enclosure.
Specifications
| Wavelength (nm) | Rating to EN 12254: 2010 + AC:2011 |
| 180 – 315 | D AB8 + IR AB3 |
| >315 – 380 | D AB5 + IR AB6 + M AB6Y |
| 915 -1180 | D AB5 + IR AB7 |
| 2720 – 2940 | D AB2 |
| 5000 – 11000 | D AB2 + I AB3 |
Ordering Options
The size can be customisable depending on the customers needs.
| A4 Size | 276 x 368mm (210 x 297mm viewing area) |
| Full Size | 830 x 630mm (770 x 570mm viewing area) |
Glaser Jailer Window
Active Window for the Laser Castle
For high-powered laser applications, this window comes in an Active Guarding version, able to shut off the laser in the event of a misfire.
