LED Ultra Signs
£363.00 – £428.34
Large Area LED Signs
Lasermet’s range of Ultra Signs are attractive, professional, illuminated wall-mounted signs for use indoors. Unlike pixelated matrix LED displays, the backlit LED design creates a seamless high quality display and look.
- High class, professional product for internal use
- Low energy, low voltage 24VDC
- LED lifespan up to 50,000 hours
- Stackable up to four signs
- Low 24mm profile ideal for use at any height, virtually eliminates risk of obstruction or accident through collision
Description
Large Area LED Ultra Signs
Lasermet’s Ultra Signs can be designed to display any message or symbol in a range of colours. The Ultra range of signs present a high class, professional image to customers. Because they are backlit using LEDs the display always looks smart. There is no pixelation in the screen which can occur in matrix LED displays.
LED Signs for hospitals, clean room environments and medical areas are available with a white surround as an alternative to the standard black surround.
Secret-until-lit Messages
When turned off, the Ultra signs present as a plain black screen. This ensures the sign stays discreet until needed, with clear, color-coded messages for different states.
The 2-Way Ultra Sign remains blank until activated. Once lit, it displays a message in green (safe) and red (warning), such as “Enter” and “Do Not Enter” in the photo above.

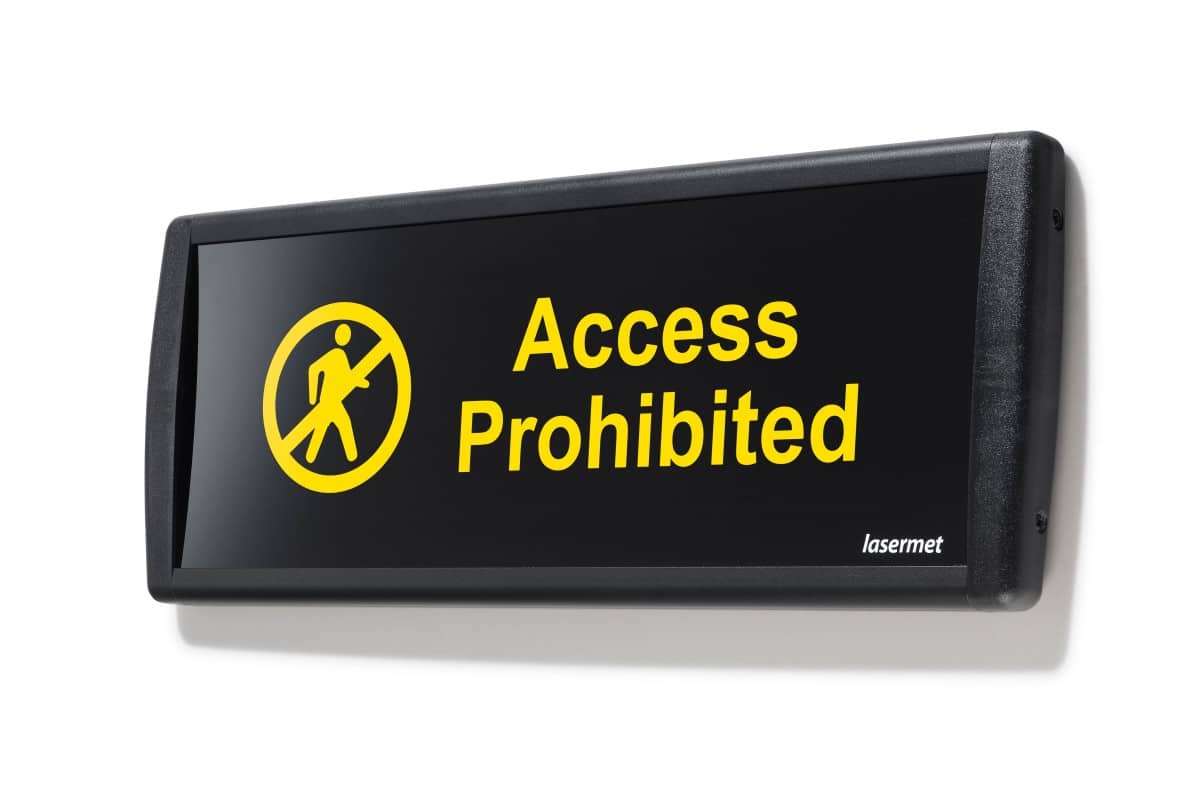

The 1-Way Ultra Sign remains blank until activated. Once lit, it displays a message in amber, such as “Access Prohibited” in the photo above. This ensures the sign stays discreet until needed.
Dual Colour & Dual Message
One of the main benefits of these desirable signs is their ability to display two messages in different colours occupying the same space. This reduces the overall area required and eliminates the need to have more than one sign for the same purpose.
Customers can specify designs, shapes and wording to their own requirements, or existing standard designs can be used. Custom designs and custom wording can be specified by the end user.
Typical uses include safety critical areas, professional practices such as dentists’ and doctors’ surgeries, hospitals including private hospitals, hotels, offices, airports, banks, insurance companies, financial institutions, government buildings, and many more.
Optional Features
AUTOMATIC VARIABLE BRIGHTNESS
Automatic variable brightness feature enables the brightness of the Ultra range sign to vary automatically depending on ambient lighting conditions.
In low light conditions the sign will dim down (preventing excessive glare and reducing power consumption) and in bright sunlight the sign will increase its’ brightness to compensate for the increased light level. If required, the brightness of the sign can be fixed at maximum, or controlled by an external 24VDC supply.
These dimmable LED signs use a light sensor to detect the surrounding light conditions and vary the light intensity of the sign accordingly.
DUAL REDUNDANCY
The signs normally ship with dual LED illuminator boards, which provides redundancy in the case of LED failure. If true redundancy is required a second control board should be requested (part no: LEDS-ULT-CB).
This fits inside the sign and provides true dual redundancy in the event of LED or control board failure. The sign can then be run from a single supply or dual supplies for highly safety critical applications. Monitor contacts can be provided as an option.

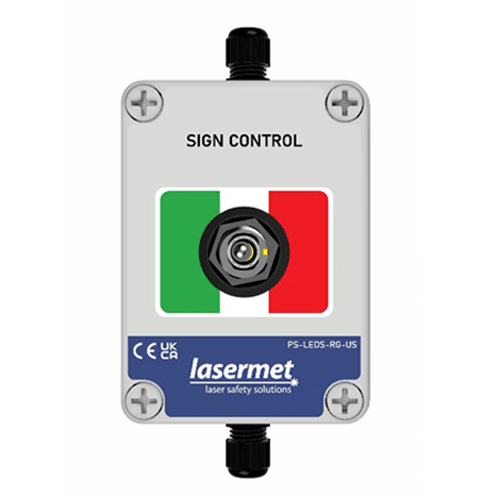

Power Supply and Switch for Signs
Lasermet provide a 24V DC Power Supply and Switch for manual operation of the switching messages.
It serves dual purposes as a manual switch and power supply unit.
Specifications
| LEDS-ULT-470 (Standard) | LEDS-ULT-790 (Large) | |
| Overall Dimensions | 470 x 178 x 24 mm | 790 x 178 x 24 mm |
| Area available for legend | 340 x 90 mm | 660 x 90 mm |
| Weight | 2 kg | 3 kg |
| Operating Voltage | 24 VDC (optional 48VDC on request) | 24 VDC (optional 48VDC on request) |
| Brightness Control Voltage (optional) | 0 – 24 VDC | 0 – 24 VDC |
| Maximum current | 0.65 A | 1.3 A |
| Minimum operational current | 0.15 A | 0.3 A |
| Cable Entry | Rear or side (via 20 mm dia. knockouts) Top or bottom entry with optional backbox | Rear or side (via 20 mm dia. knockouts) Top or bottom entry with optional backbox |
| Optional Backbox Size (mm) | Single: 362 x 162 x 35 Double: 362 x 343 x 35 Triple: 362 x 524 x 35 Quadruple: 362 x 705 x 35 | Single: 682 x 162 x 35 Double: 682 x 343 x 35 Triple: 682 x 524 x 35 Quadruple: 682 x 705 x 35 |
Standard Options
Standard Ultra Signs are available as single or dual message. Available colours are white, yellow, green, and red though other colours are available upon request.
‘LASER HAZARD’ SIGNS
470 VERSION
790 VERSION
‘X-RAY WARNING’ SIGNS
470 VERSION
790 VERSION
‘ACCESS PROHIBITED’ SIGNS
470 VERSION
790 VERSION
‘DO NOT ENTER’ SIGNS
470 VERSION
790 VERSION
‘OPEN / CLOSED’ SIGNS
470 VERSION
790 VERSION
‘BOARDING’ SIGNS
790 VERSION
470 Signs Variations
| Part Number | Description | Colours Available |
|---|---|---|
| LEDS-ULT-470 | Without Overlay (Custom message) |  white  red  blue  yellow  green  red/blue  red/green |
| LEDS-ULT-470-IP | Without Overlay, IP65 (Custom message) | white |
| LEDS-ULT-470-AP-G | Access Allowed | green |
| LEDS-ULT-470-AP-R | Access Prohibited | red |
| LEDS-ULT-470-AP-2W | Access Prohibited / Access Allowed (2-Way) | red/green |
| LEDS-ULT-470-DNE | Do Not Enter | red yellow |
| LEDS-ULT-470-DNE-2W | Do Not Enter / Enter (2-Way) | red/green |
| LEDS-ULT-470-DNE | Do Not Enter (German) `Zutritt Verboten` | red |
| LEDS-ULT-470-L | Laser Radiation | white red yellow green |
| LEDS-ULT-470-L-2W | Laser Radiation (2-Way) | red/green |
| LEDS-ULT-470-L-2W-FR | Laser Radiation (2-Way) (French) | red/green |
| LEDS-ULT-470-L-2W-G | No Hazard Laser Off / Danger Laser On (2-Way) (German) | red/green |
| LEDS-ULT-470-L-2W-I | Laser Radiation (2-Way) (Italian) | red/green |
| LEDS-ULT-470-LOP-R | Laser Operational | red |
| LEDS-ULT-470-LPO-Y | Laser Power On | yellow |
| LEDS-ULT-470-LAS-J | Laser On / Laser Off (2-Way) (Japan) | red/green |
| LEDS-ULT-470-XR | Danger X-Rays On | red yellow green |
| LEDS-ULT-470-XR-2W | X-Ray Radiation | red/green |
| LEDS-ULT-470-XR-2W-AE | X-Ray Radiation (Arabic/English) | red/green |
| LEDS-ULT-470-XR-2W-G | `Röntgenstrahlung` (German) | red/green |
| LEDS-ULT-470-NWG-B-FL | Not Wearing Goggles | blue |
| LEDS-ULT-470-RIU-2W | Room Available / Room In Use (2-Way) | red/green |
Part Numbers may vary depending on the chosen color.
790 Signs Variations
| Part Number | Description | Colours Available |
|---|---|---|
| LEDS-ULT-790 | Without Overlay (Custom message) | white red blue yellow green red/green  red/yellow |
| LEDS-ULT-790-B-AP | Access Prohibited | blue |
| LEDS-ULT-790-AP-2W | Access Prohibited / Access Allowed (2-Way) | red/green |
| LEDS-ULT-790-DNE | Do Not Enter | red |
| LEDS-ULT-790-DNE-2W | Do Not Enter / Enter (2-Way) | red/green |
| LEDS-ULT-790-L | Laser Radiation | white red blue yellow |
| LEDS-ULT-790-L-2W | No Hazard Laser Off / Danger Laser On (2-Way) | red/green |
| LEDS-ULT-790-L-2W-G | No Hazard Laser Off / Danger Laser On (2-Way) (German) | red/green |
| LEDS-ULT-790-LE-J | Laser Energized (1-Way) (Japan) | red |
| LEDS-ULT-790-NWG-B-FL | Not Wearing Goggles | blue |
| LEDS-ULT-790-XR-2W | Danger X-Ray On / No Hazard X-Ray Off (2-Way) | red/green |
Part Numbers may vary depending on the chosen color.
Mounting Options
BACKBOXES
Backboxes are recommended when two or more Ultra LED signs are to be mounted together to create a multiway sign.
LEDS-ULT-470/790-BB2
Backbox for two Ultra signs
LEDS-ULT-470/790-BB3
Backbox for three Ultra signs
LEDS-ULT-470/790-BB4
Backbox for four Ultra signs
LEDS-ULT-470/790-PT
Backbox plastic trim
BRACKETS
The following mounting options are available for the 470mm and 790mm wide Ultra Range of LED signs.
Ceiling Mount Bracket – Single Sign
Part no. LEDS-ULT-CMB
Ceiling Mount Bracket – Double Sign
Part no. LEDS-ULT-CMB2
Wall Mount Bracket – Single Sign
Part no. LEDS-ULT-WMB
Wall Mount Bracket – Double Sign
Part no. LEDS-ULT-WMB2
FLUSH MOUNT BEZEL
The flush mount bezel is available for mounting single or multiple stacked Ultra signs flush to a wall.
- LEDS-ULT-470-FMB1 for 1 Sign
- LEDS-ULT-470-FMB2 for 2 Signs
- LEDS-ULT-470-FMB3 for 3 Signs
- LEDS-ULT-470-FMB4 for 4 Signs
Additional information
| Weight | N/A |
|---|---|
| Part Number | LEDS-ULT-470-AP-G, LEDS-ULT-470-AP-R, LEDS-ULT-470-DNE-Y, LEDS-ULT-470-DNE-R, LEDS-ULT-470-DNE-2W, LEDS-ULT-470-RIU-2W, LEDS-ULT-470-L-2W, LEDS-ULT-470-L-G, LEDS-ULT-470-L-R, LEDS-ULT-470-L-Y, LEDS-ULT-470-XR-2W, LEDS-ULT-470-XR-G, LEDS-ULT-470-XR-R, LEDS-ULT-470-XR-Y |
