ICS-TOUCH II Interlock Controller
Interlock® Control System for Operating Theatres
The ICS-TOUCH provides touchscreen monitoring and control for operating theatres and X-ray machines.
- Easy-to-use touchscreen technology

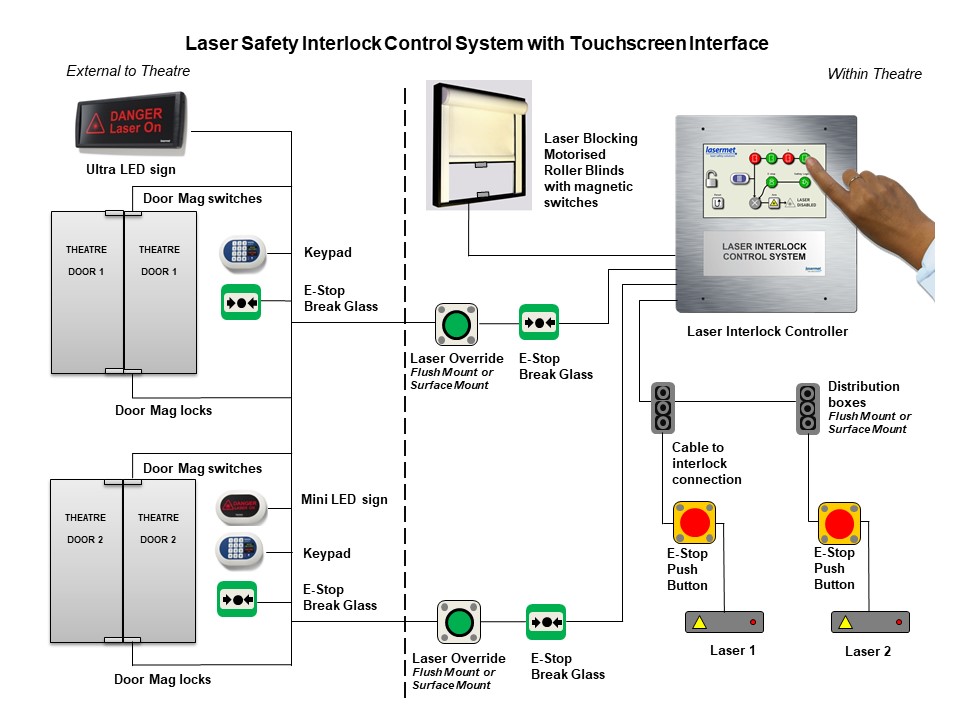

- Interlocked Doors, Roller Blinds and Emergency Stops

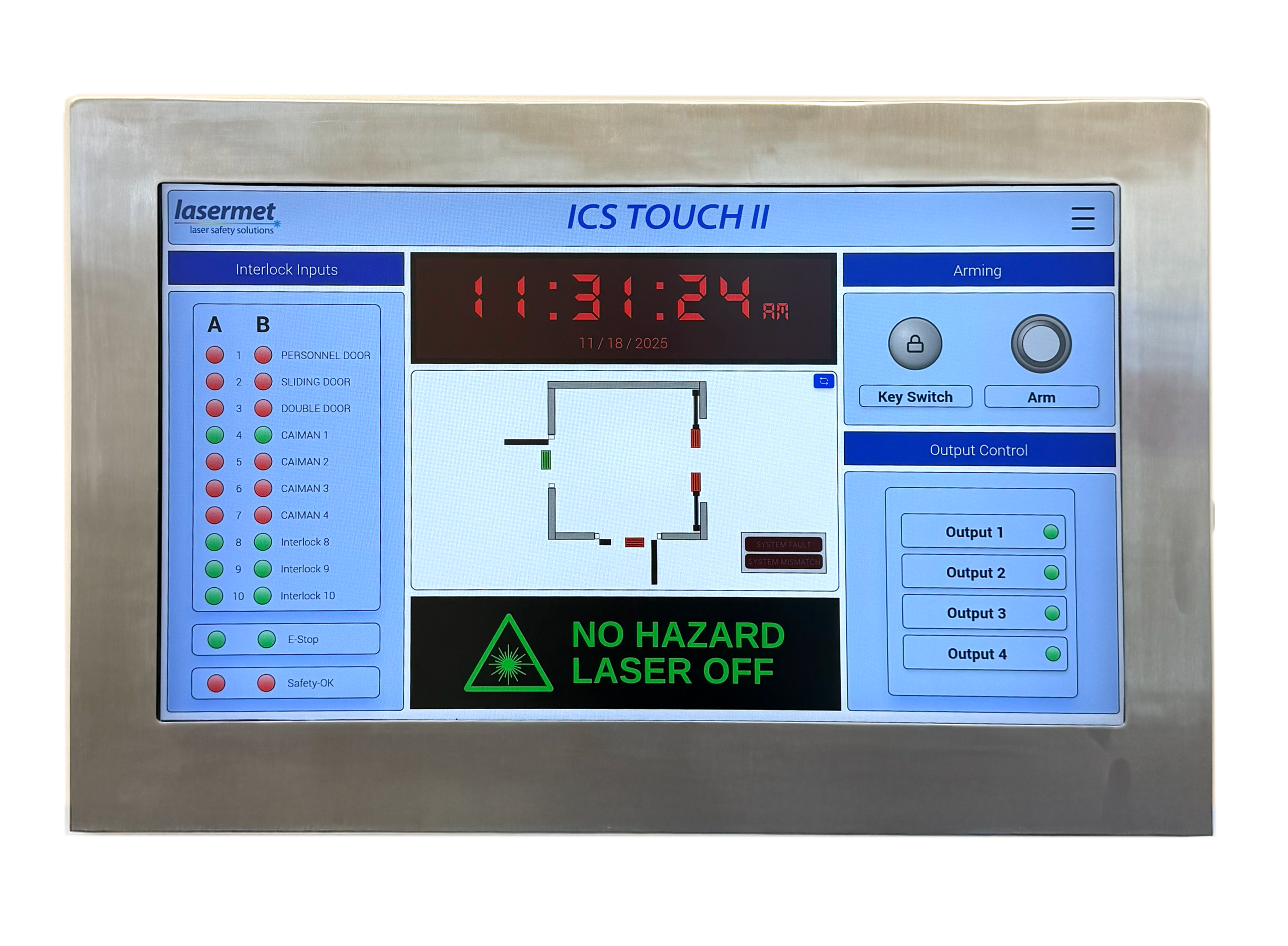

- Flush-fit to wall or door
- Full dual channel safety to ISO 13849-1 Performance Level ‘e’
- Secure Access Keypad Lock
Description

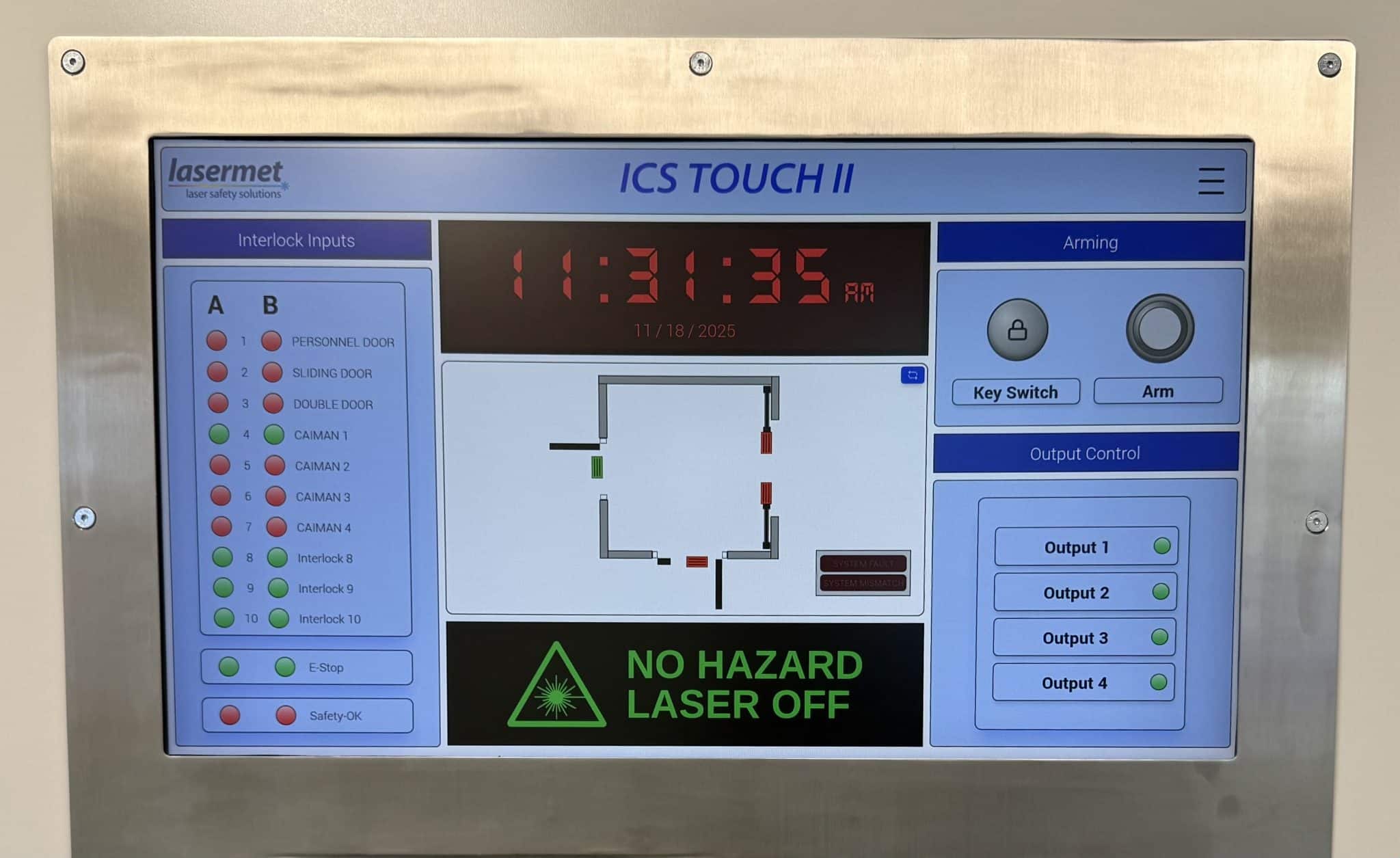

The ICS‑TOUCH II is Lasermet’s next-gen upgrade to the standard touchscreen interlock controller, tailored for medical-grade laser systems. Like its predecessor, it provides full dual-channel safety, interlock monitoring, and secure arming—but adds a larger touchscreen display, enhanced monitoring of up to 10 inputs, and integration with multi-laser environments and CALM monitoring systems.
Interlock Inputs
The ICS-TOUCH II is equipped with 10 individually monitored safety interlock inputs. Each using dual-channel (A and B) monitoring to ensure system integrity and compliance with EN ISO 13849-1 Performance Level ‘d’.
LED indicators will illuminate:
Digital Clock
A digital clock on the ICS-TOUCH II touchscreen shows the current time (HH:MM:SS) and date (MM/DD/YY) in 24-hour format, aiding time-sensitive operations and maintenance.
It updates in real time based on the configured system settings.
Arming
Allows activation and deactivation of laser systems. Includes a Pin-protected keyswitch for security and an arming button to initiate laser operation.
LED indicators will illuminate:
Before enabling the keyswitch, a 4-digit PIN must be entered on the on-screen keypad that appears after selecting the keyswitch icon. If an incorrect code is entered, “Incorrect PIN” will be displayed on the interface, and access will be denied.
LED Sign Status Display
The ICS-TOUCH II drives a two-state LED warning sign that automatically shows either:
No Hazard Laser Off when disarmed or interlocks are unsafe
Danger Laser On when armed and outputs are active
Driven by a changeover relay, the sign provides synchronized, fail-safe visual indication in line with IEC 60825.
System Overview
Shows the overall system status, including active lasers, Interlock faults/mismatch and labels.
LED indicators will illuminate:
Output Status/Control
Toggle to activate and deactivate specific laser. Displays the active laser wavelength and the LED status indicator that will illuminate:
Key Features

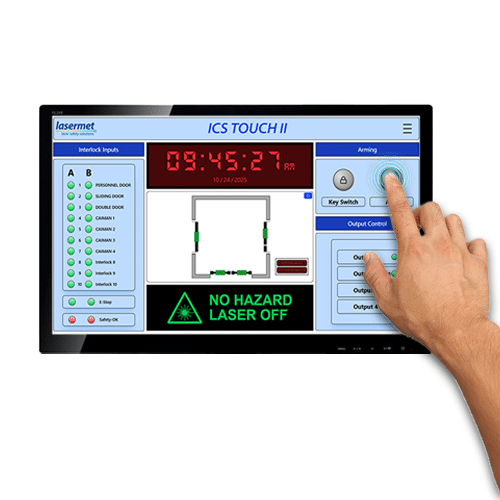

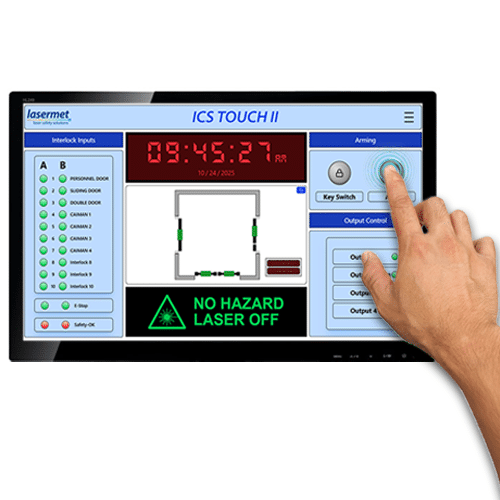

24” or 10” Touchscreen Interface
Large, intuitive display for real-time control and full visibility of system status, ideal for medical environments.
Dual-Channel Safety Architecture
Complies with EN ISO 13849-1 PL ‘e’, ensuring fail-safe monitoring of all safety-critical inputs.
10 Individually Monitored Interlock Inputs
Supports door interlocks, E-Stops, window blinds, and other safety devices—each monitored with dual-channel integrity.
Secure Access Control
System arming is restricted to authorized personnel via mechanical key switch or PIN code entry.
Three Safety Interlock Outputs
Volt-free, fail-safe relay outputs used to disable laser sources, activate shutters, or secure door locks.
Laser Status Display
Clear on-screen indication of system state: “No Hazard / Laser Off” or “Danger / Laser On.”
Feedback Monitoring
Continuously checks that connected devices like shutters and locks return to a known safe condition.
