Heavy Duty Laser Blocking Screen
These heavy duty laser blocking screens are designed to enclose an area where Class 3B and Class 4 lasers are used to protect against accidental exposure.
- Portable
- Designed to block high power, multikilowatt laser
- CE marked and certified to BS EN IEC 60825-4 Safety of Laser Products Part 4: Laser Guards
Description

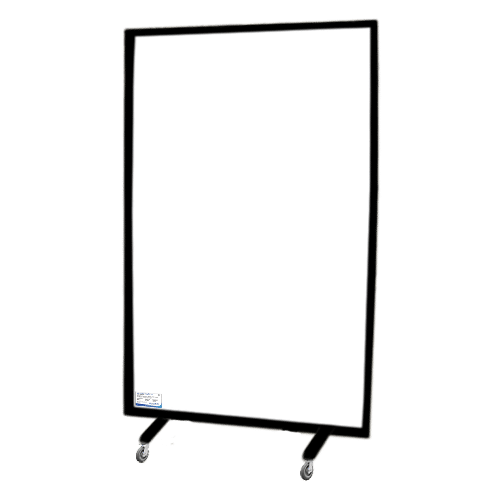

These Heavy Duty Laser Blocking Screens consist of a 50 mm thick sandwich of steel and a special lightweight laser-blocking material, with a white laminate finish on both sides. This is mounted on a powder-coated steel framework, with heavy-duty lockable castors. It can block all laser wavelengths and is specially suited for multi-kilowatt lasers.
The screens can be wheeled into position and then kept there by locking the castors. They can be used to form a complete enclosure or part thereof.
PEL Ratings
| Irradiated Area | PEL (T3) 10s | PEL (T2) 100s |
| 4mm² | 62 MW/m² | 35 MW/m² |
| 2000mm² | 3.1 MW/m² | 1.7 MW/m² |
Ordering Options
The standard sizes are listed below.
| Part Number | Dimension |
| LBS-HD-8 | 2054 x 50 x 2458mm |
| LBS-HD-4 | 2054 x 50 x 1058mm |
| LBS-HD-RA | Right angle connector |
