LS-30 Series Laser Shutters
Multi-directional Mounted Laser Beam Shutters
The Lasermet LS-30 Series of Laser Safety Beam Shutters are intended to provide a means of preventing accidental exposure to potentially harmful laser beams. Compared to the previous LS-20 Series of beam shutters, the LS-30 Series can be mounted in any direction.
- Can be mounted in any orientation
- Spring-loaded blade
- SIL3 rated dual-channel versions available
- OEM versions available
Description
360° Mounting for Laser Beam Shutters
Compared to the LS-20 Series, the LS-30 Series of shutters are operable in any direction in the vertical and horizontal position to allow for a wider range of mounting options to better suit your needs. The LS-30 Shutters feature spring-loaded blades.
Beam shutters are designed to form part of a high-integrity safety system and features a spring-operated blade and force-disconnect proving contacts. When closed, the shutter deflects the incoming laser beam onto an internal beam dump where the energy is converted to heat which is dissipated in the aluminium casing of the shutter. When the shutter is open, the laser beam passes through the shutter without interruption.
Standard, SIL rated, and OEM Versions
Four variations are available in the LS-30 Series including a SIL-rated version and OEM version.
A SIL3 version is available which, when correctly wired to a Lasermet Interlock® Control System, can meets Safety Integrity Level 3 to IEC 61508-1 and Performance Level ‘e’ to EN 13849-1.
The LS-30 also comes in an OEM version, designed to be integrated into user equipment to create a custom laser product with built-in laser shutters.
LS-30
LS-30SIL
LS-30-OEM
LS-30SIL-OEM
Control Options
Standard operation is by means of the ‘Open’ and ‘Close’ buttons on top of the shutter case, remote switching is also possible. Alternatively the shutter can be set to open as soon as power is applied. In all cases the shutter will close when power is removed.
Beam Shutter for High Power Lasers
The maximum average power for use with the internal beam dump is 20W. However for higher powers the beam dump can be easily removed by unscrewing it from the side of the shutter case. Beam tubes can be fitted and the beam can be directed to a remote beam dump. This allows the shutter to be used for much higher powers, even for multi-kilowatt lasers.
Shutter Blade Options

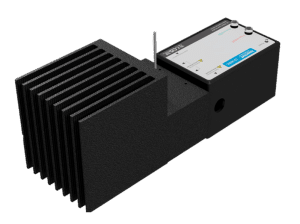

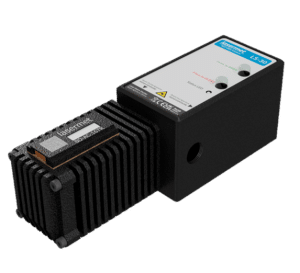

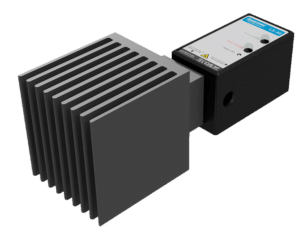

The shutter blade is made of stainless steel which is sufficient for most applications. However, ceramic or mirror blades can be factory fitted to the blade if required. An external beam dump option is also available.
Specifications
| Model No. | LS-30 | LS-30SIL | LS-30-OEM | LS-30SIL-OEM |
| Channels | Single | Dual | Single | Dual |
| Aperture Diameter | 16 mm | 16 mm | – | – |
| Operating Voltage | 24 V DC | 24 V DC | 24 VDC | 24 VDC |
| Size (mm) | 112 x 60 x 74 | 112 x 78 x 74 | 91.3 x 40.4 x 63.8 | 89 x 68.8 x 66.3 |
| Weight | 600g | 900g | 270g | 500g |
| Safety Integrity Level (to IEC 61508-1) | TBA | SIL 3 | TBA | SIL 3 |
| Performance Level (to EN 13849-1) | ‘c’ | ‘e’ | ‘c’ | ‘e’ |
Dimensions
LS-30
LS-30SIL
LS-30-OEM
LS-30SIL-OEM
Remote Shutter Control
LS-RS30 Remote Shutter Switching Station
A remote switching station is available, allowing the shutter to be opened and closed by pressing buttons remote from the shutter itself. As well as start and stop buttons there is LED indication of ‘power on’, ‘open’ and ‘closed’.
Distribution Box for LS-30 Beam Shutters
These are wall mountable distribution boxes with terminals for connection to a Lasermet ICS Interlock® control system or other shutter power supply.
| LS-RS30 | Remote switching station for shutters 1 shutter connection |
| ICS-DB30-0/2 | 2 shutter connections |
| ICS-DB30-1/1 | 1 shutter connection and 1 interlock connection |
