Dolphin Pod Lite

Lightweight Laser Safety Curtain Pod

The Dolphin Pod Lite is a lightweight, modular curtain-based enclosure for hand-held laser welders. It features Lasermet’s Dolphin Laser Blocking Curtains which are certified to EN 12254 and are ideal for industrial applications.

- Lightweight and modular solution
- Interlock® ready
- Spring-lock for rapid assembly
- Ideal for hand-held laser welders

Description

Lightweight Self-Assembly Laser Curtain Pod

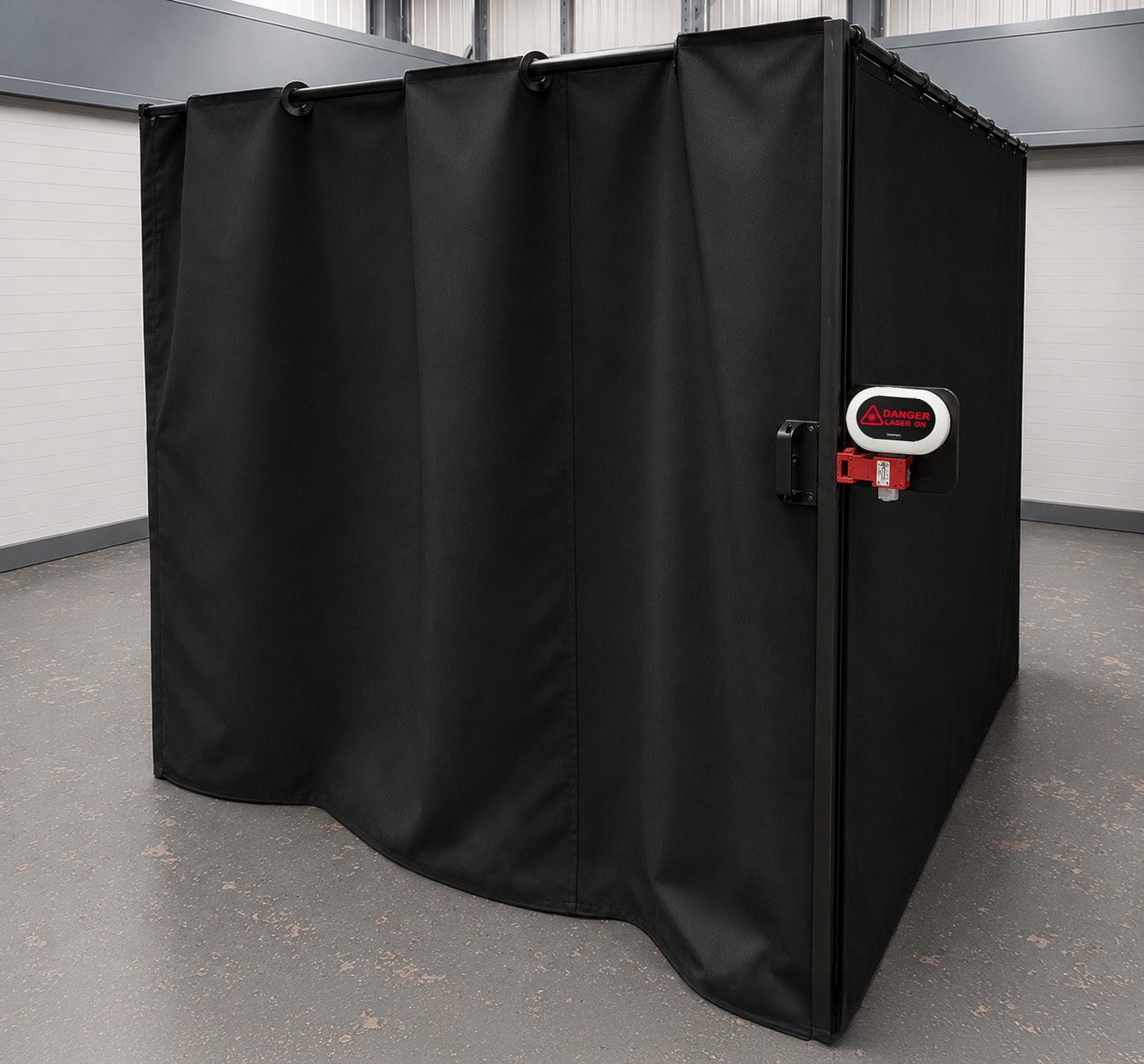

The Dolphin Pod Lite is a lightweight, modular, free-standing laser safety enclosure designed to support laser blocking curtains, allowing users of handheld laser welding devices to work safely without exposing nearby personnel to stray laser radiation. Constructed using a lightweight frame, the Dolphin Pod Lite is easy to handle, transport, and assemble while maintaining the flexibility required for temporary or changing workspaces.

Dolphin Pod Lite Assembly at Lasermet’s Haydock Manufacturing Facility in the UK

Rapid Installation

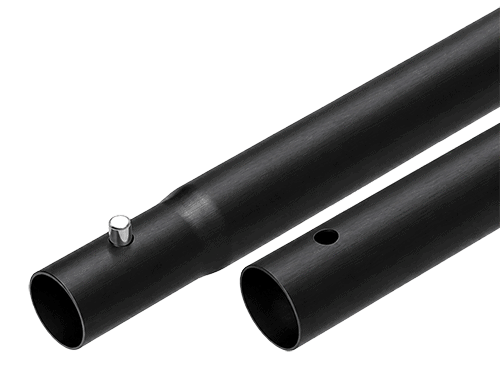

swaged tubes spring lock by Lasermet Laser Safety Solutions — Swaged tubes with spring-button lock

The Dolphin Pod Lite is designed for rapid installation. Its lightweight frame features swaged tubes with spring-button locks that simply click into place, enabling fast, secure assembly with minimal tools.The enclosure can be easily disassembled, transported, and reassembled whenever the workspace layout changes, making it a practical and adaptable laser safety solution.

Interlock® Options

The Dolphin Pod Lite comes with an Interlock® upgrade option complete with safety interlock switches, dual-message LED warning sign, and emergency stops – all linked to a Lasermet Interlock^® Controller.

Specifications

The Dolphin Pod Lite is built from Lasermet’s Dolphin Laser Blocking Curtain material – certified to EN 12254 Screens for Laser Working Places. The specifications given for the protection levels and PEL ratings are for the Dolphin Laser Blocking Curtain material.

DIMENSIONS

The Dolphin Pod Lite enclosure is available in multiple sizes.

2 x 2 x 2m
2 x 3 x 2m
3 x 3 x 3m

PROTECTION LEVELS

Wavelength Range (nm)	Protection Level
180 – 315	D AB8 + IR AB3 + M AB5Y
315 – 1050	D AB6 + IR AB7 + M AB7Y
1050 – 1400	D AB5 + IR AB7 + M AB7Y
1400 – 25000	DI AB3 + R AB3Y
