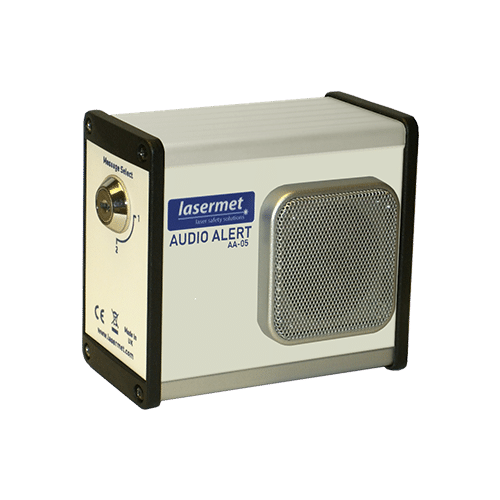

AA-05 Audio Alert (IP65)
IP65 rated Audio Alert suitable for outdoor use
The AA-05 Audio Alert is the IP65-rated version of the standard AA-04 Audio Alert. It is a local public address (PA) system for automatic announcements, warnings, information, or instructions suitable for outdoor use.
Custom messages can be up to 40 seconds long and the message repetition and frequency can be pre-programmed to your needs.
- Integrate into Interlock® control systems
- Fully custom messages, repetition, and volume
- Line-out to external audio equipment
Description

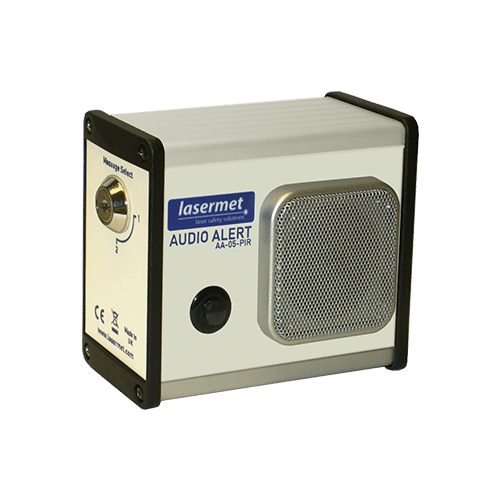

The AA-05 Audio Alert is an audio alert which is suitable for outdoor settings (IP65 rated). Like the AA-04 Audio Alert, it audibly delivers a pre-programmed message when triggered. The message is heard from a speaker integrated into the compact unit, which is triggered by one of the following options.
- Passive Infrared Detector (PIR)
- Application of 6 – 24VDC
- Programmed Timer
In the standard unit, two messages can be recorded and either one can be selected by a keyswitch.
Fully Custom Options
Optional functions, which are decided at the point of ordering, include volume control and the facility to hear a single message on triggering or to have messages repeated at specified intervals. Message repetition can be delayed for up to an hour. If the device is used in a temporary situation it can be returned to Lasermet to be reprogrammed with an alternative message.
Lasermet also supply a compatible microphone system to allow the customer to record messages in-house. This is useful for applications which require messages to constantly change.
Tamper-Proof

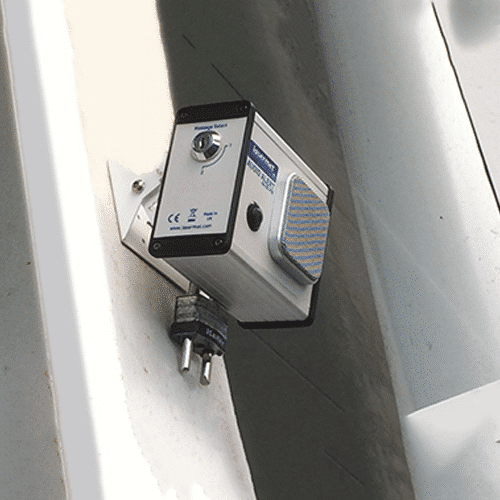

Every care has been taken to make the unit as vandal-proof as possible. The Audio Alert IP65 unit is mounted using a tilt bracket and secured with a padlock. The tilt bracket adjustment screws are tamper-proof.
Ordering Options
| Part Number | Description |
| AA-05-PIR | Standard Unit |
| AA-05-PIR-BAT | Standard Unit with self-contained rechargeable battery |
| AA-05-BC | Battery Charger for AA-05-PIR-BAT |
| AA-05-WMK | Adjustable Mounting Bracket with secure locking system |
| AA-MIC | Microphone and connector for message recording |
Additional information
| Power Supply | 6 – 24VDC |
|---|---|
| Power Consumption | 10mA (0.24W) Standby |
| Ingress Protection | IP65 |
| Dimensions | 125w x 108h x 59d mm |
| Weight | 900g (including battery) |
