ICS-KP23
Lasermet’s ICS-KP23 Access Keypad with dual channel override allows users to override an associated door or global override all doors in a laser controlled area.
- Global override – override all door switches
- Local override – override only the adjacent door
-

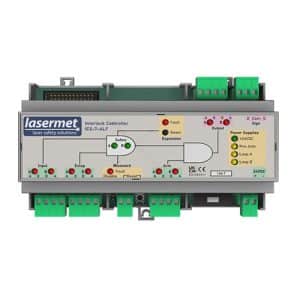

Interlock Controller for ALF-ready Systems
The ICS-7-ALF protects personnel from hazardous laser exposure by integrating dual-channel safety control with helmet-based interlock monitoring.
It features advanced monitoring capabilities, including:
- Continuous monitoring of helmet wear and visor closure
- Dual-channel, cross-checked architecture (PL ‘e’ compliant)
- Volt-free fail-safe interlock outputs for laser and PLC control
- Seamless integration with ALF-ready equipment and expansion options
-

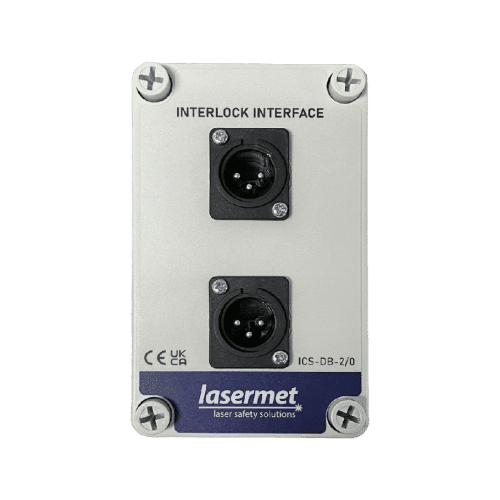

Distribution Box
The ICS-DB-2/0 distribution box can accommodate up to two interlock output connections (laser connections).
-

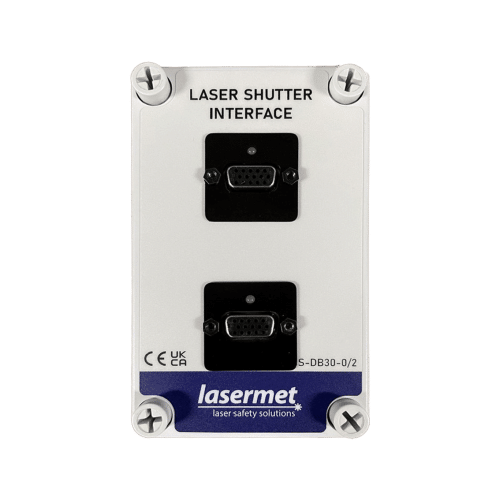

Distribution Box
The ICS-DB30-0/2 distribution box can accommodate up to two Lasermet beam shutter connections.
-

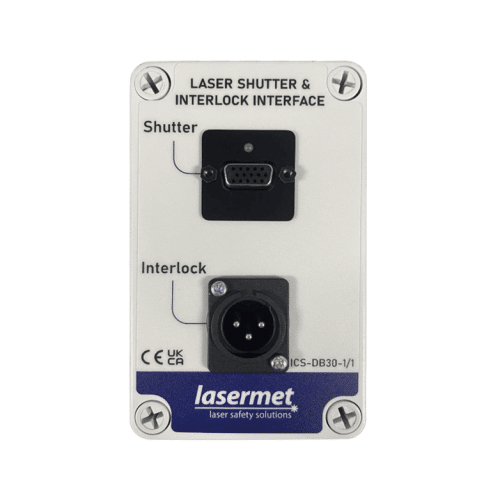

Distribution Box
The ICS-DB30-1/1 distribution box can accommodate one Lasermet beam shutter and one interlock output (laser connection).
-

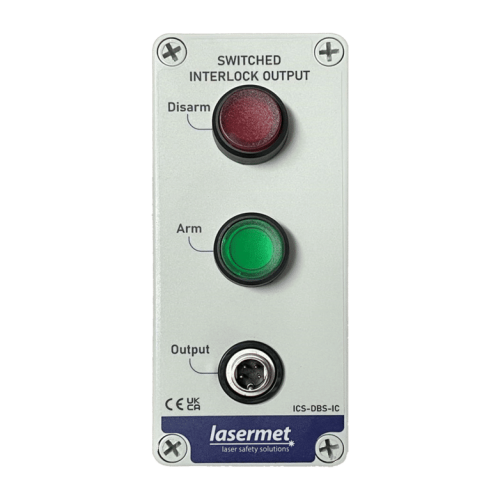

Switched Distribution Box
Lasermet’s ICS-DBS-IC switched interlock distribution box allows you to easily arm and disarm a connected laser. Each unit has an interlock connection for a single laser.
-

The ICS-LJM protects individuals and equipment from high-power laser hazards by actively monitoring enclosures using Lasermet’s Active Guarding technology.
It features advanced monitoring capabilities, including:
- Real-time detection of enclosure breaches
- Four Active Guarding monitoring circuits in the main unit
- Expansion units for extended functionality
- Automatic laser shutdown in the event of a fault
- Fail-safe arming logic to prevent accidental reactivation
-

Dual Channel Interlock® Switch
Lasermet’s IS-MDC-12 is a dual channel coded magnetic door safety contact, which is used to detect when a door or other moveable cover forming part of a protective enclosure is open.
- Achieve Performance Level ‘e’ as specified in BS EN 13849-1:2008
- Small, sleek, and compact package
- CE and UKCA marked
-

Lasermet’s IS-MECH-2 delivers reliable safety performance with robust construction, tamper resistance, and compliance with international safety standards. This interlock switch incorporates a multitude of advanced features, including:
- Positive break contacts for reliable safety cut-off
- Tamper-resistant actuator with secure forced disconnection
- Fits sliding, hinged, or lift-off guards for flexible installations
- High safety rating up to PL ‘e’
-

The LED Power Supply and Switch is a compact two-way unit that powers and manually controls Lasermet’s Mini and Ultra LED signs. It provides clear, real-time display of laboratory statuses including:
- Manual control for Mini & Ultra LED signs
- Compact form factor for easy installation
- Dual-functionality: switch + power supply in one unit
- Compatible with Lasermet laser safety systems
-

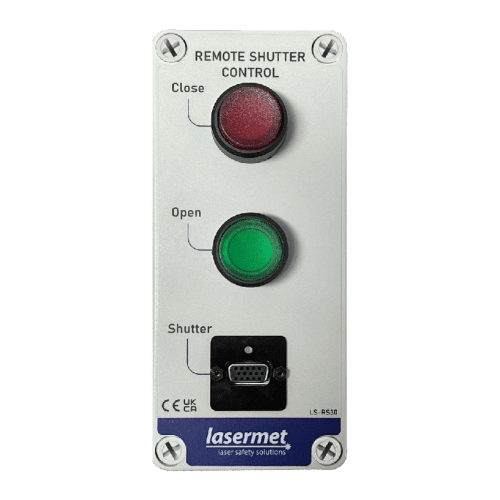

Remote Switching Station for Beam Shutters
The LS-RS30 allows Lasermet beam shutters to be remotely operated and controlled. Each unit can accommodate a single beam shutter connection.
-

LED-WIFE Laser Wavelength Warning Sign
The WIFE is an automatic Warning Sign that shows which laser wavelengths are in use in the laboratory, so you can select the correct laser protective eyewear before entering.
