Lasermet Model BD20-AC Laser Safety Beam Dump

BD-20-AC Laser Beam Dump

Single Channel Beam Dump for LS-20 and LS-30 Shutters

The standard BD-AC beam dump is compatible with the single channel laser shutter LS-20 and LS-30. When the shutter is closed, the shutter deflects the incoming laser beam towards its beam dump port.

Request Info

Category: Tag:

Description

Download Brochure

Lasermet’s BD-20-AC can dissipate a maximum laser power of 125W. The beam dump must be used with a compatible laser shutter with an aperture of 16 or 20mm.

Mounting


The beam dump is connected to the shutter by connector ring(s) supplied with the shutter. To connect a beam dump, unscrew the plug from the beam dump port of the shutter and screw the connector ring in its place.

Specifications

Dimensions 162 x 90 x 100 mm
Weight 2.3 kg
Aperture Size 20 mm
Material Anodised Aluminium

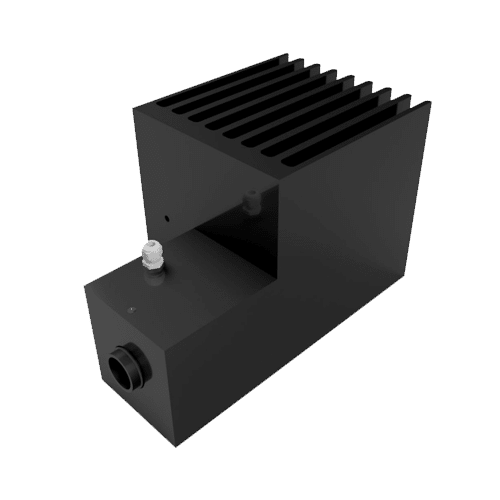

Lasermet Model BD20-AC with shutter beam dump for laser safety
BD-20-AC with shutter
Lasermet Model BD20-AC-DC with shutter beam dump for laser safety
BD-20-AC-DC with shutter

For the dual channel version compatible with the SIL-rated LS-20SIL laser beam shutter, see BD-20-AC-DC.

Dimensions

BD-20-AC Laser Beam Dump top, front, right and bottom view.
