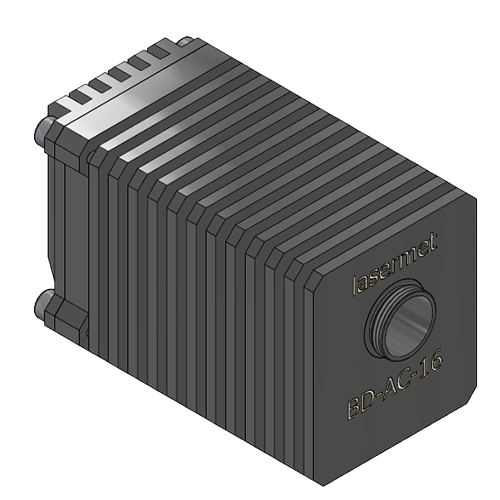

Air-cooled Laser Beam Dump

BD-AC-16 and BD-AC-16TR

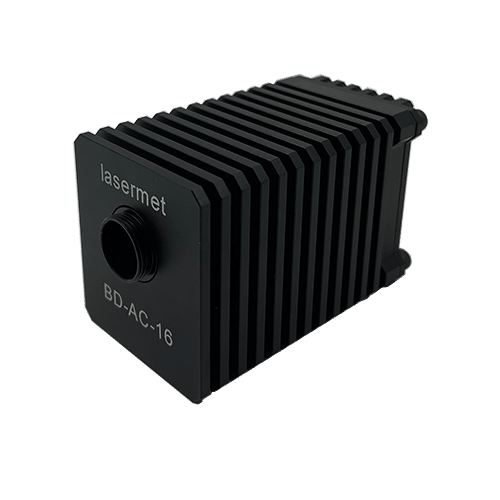

Lasermet’s air-cooled laser beam dump uses convection cooling to absorb laser beam energy when connected to a laser beam shutter. The air cooling system aids in absorbing beam energy and dissipates more laser power than a shutter itself.

A built-in temperature monitor is included in the upgraded models.

Description

Lasermet’s air-cooled beam dump is designed to be used with a suitable laser beam shutter with an aperture of 16mm. Lasermet’s air-cooled beam dump is intended to absorb and dissipate laser energy deflected from a laser shutter through convection cooling.

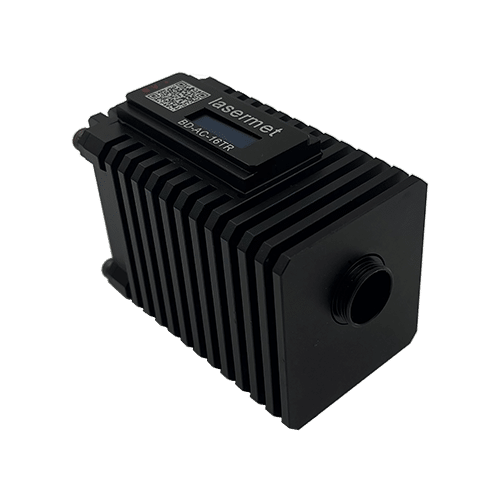

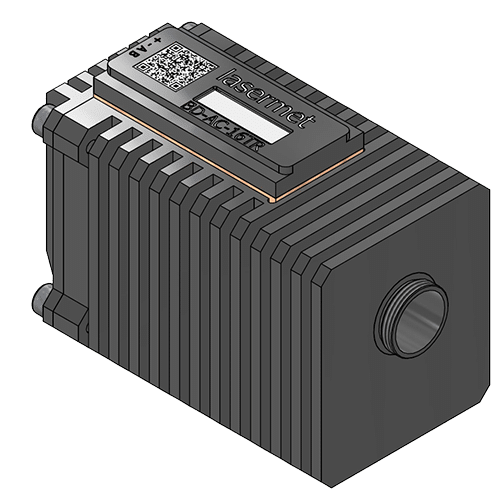

Temperature Read-out Monitor

The BD-AC-16 can be upgraded with built-in temperature read-out which allows users to monitor beam dump’s temperature during operation. To start operation connect a power supply to the power terminal port of the beam dump using a DC cable. The temperature unit can be in Celsius (°C) or Fahrenheit (°F).

Shutter Compatibility

The BD-AC-16 Series is compatible with the Lasermet’s series of laser beam shutter. These laser shutter are fitted with stainless steel blade and can be factory fitted with mirror, ceramic and copper blade when needed.

BD AC TR to LS 30 by Lasermet Laser Safety Solutions

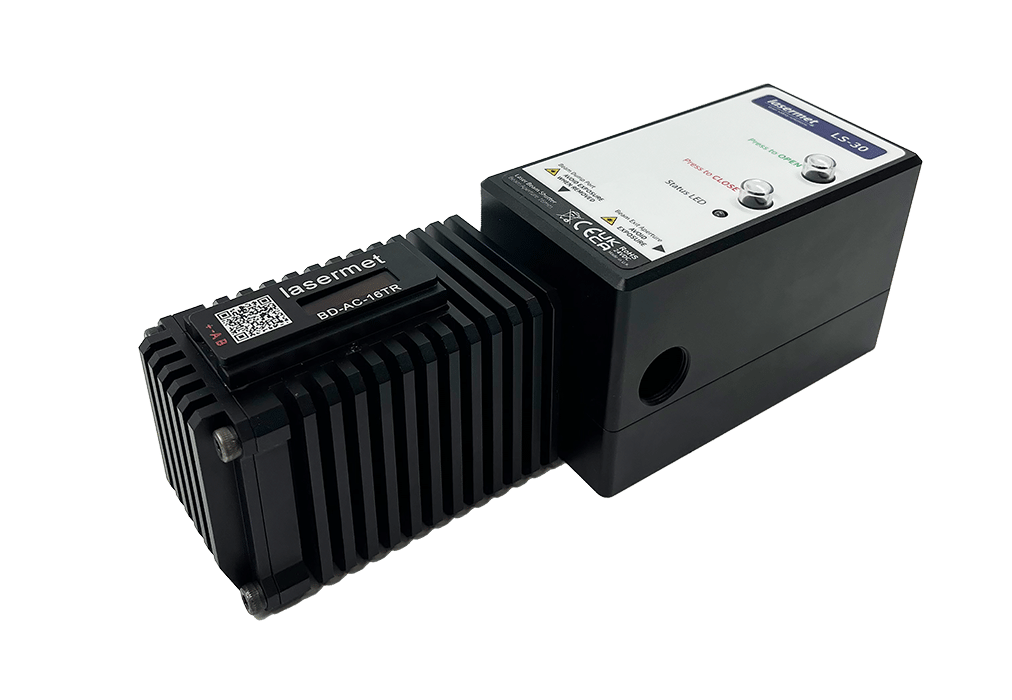

BD-AC-16-TR connected to LS-30 Laser Shutter
LS-20 High Integrity Laser Shutters

The LS-20 features a gravity-close blade and force-disconnect proving contacts.

LS-30 Series of Laser Shutters

The LS-30 features a spring-loaded blade that allows mounting different orientations.

Specifications
Model NumberBD-AC-16BD-AC-16TR
Dimensions94 x 50 x 56mm94 x 50 x 63mm
Aperture Diameter16mm16mm
Mounting FeatureMetric (M6)
Imperial (1/4 – 20)
Metric (M6)
Imperial (1/4 – 20)
Shutter CompatibilityLS-20
LS-30
LS-20
LS-30
Operating Voltage24V
MaterialAnodised AluminiumAnodised Aluminium
Dimension

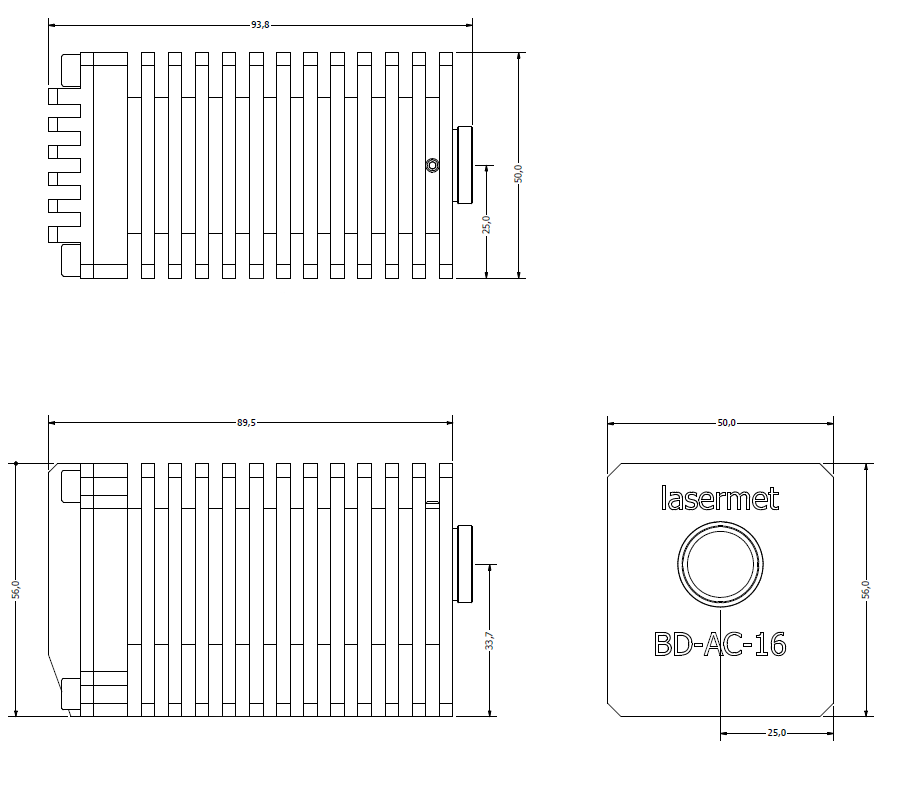

Dimensions BD AC 16 by Lasermet Laser Safety Solutions
BD-AC-16

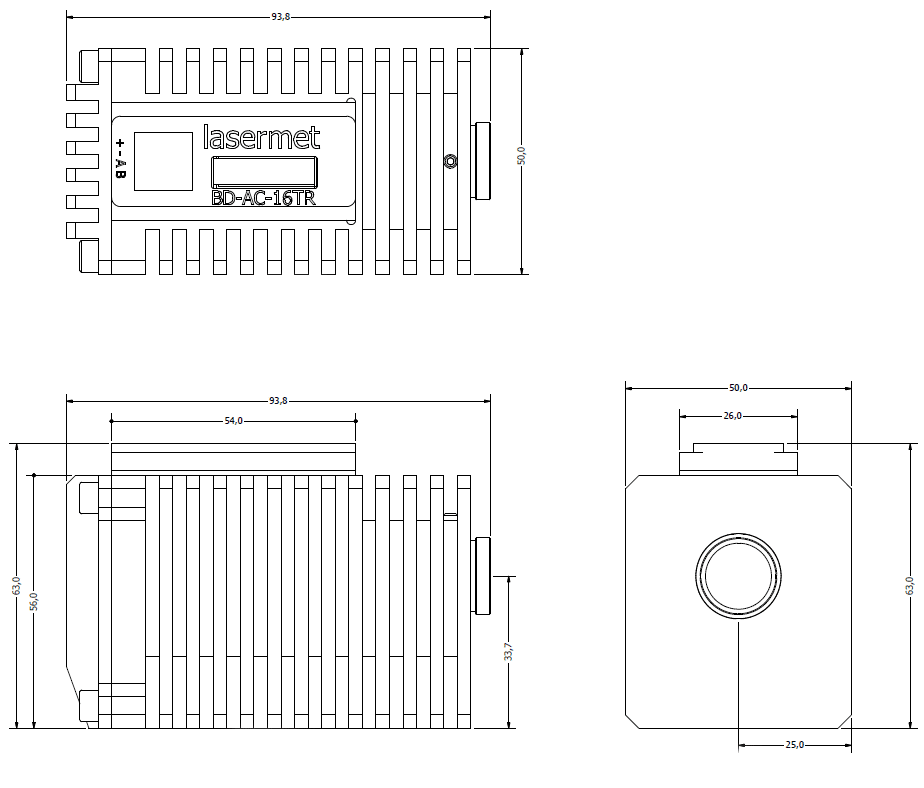

Dimensions BD AC 16 TR by Lasermet Laser Safety Solutions
BD-AC-16TR
