IS-MDC-12 Interlock® Switch
Dual Channel Interlock® Switch

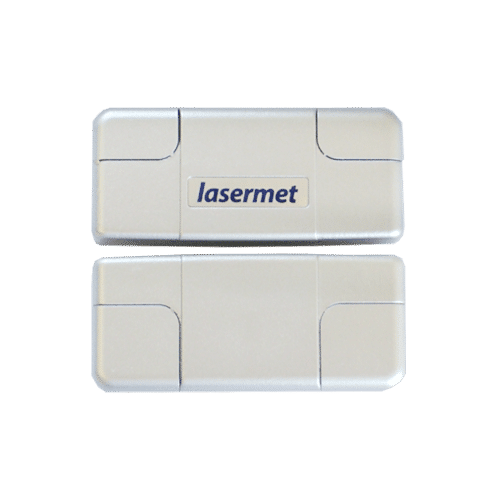

Lasermet’s IS-MDC-12 is a dual channel coded magnetic door safety contact, which is used to detect when a door or other moveable cover forming part of a protective enclosure is open.
- Achieve Performance Level ‘e’ as specified in BS EN 13849-1:2008
- Small, sleek, and compact package
- CE and UKCA marked
Description
Dual-channel Code Magnetic Interlock® Switch
- Small and compact – attractive design blends in with professional laboratories and high-tech facilities.
- High performance and dependability. When properly wired to a suitable Interlock® controller, the IS-MDC-12 can achieve Performance Level ‘e’ as specified in BS EN 13849-1:2008.
- Design with “coded” elements. i.e. The magnetic field is designed in such a way that a single magnet cannot easily defeat the switch.
- The dual channel Interlock® switch is small in size, measuring only 67mm (2.64″) wide, 29.5mm (1.16″) tall, and 13.5mm (0.53″) deep.
- Offset alignment tolerance is high.
- Rear or top cable entry is concealed.
- CE and UKCA requirements are met.
The IS-MDC-12 has three contacts, two of which are closed and one of which is open when the door is closed. All three contacts switches when the door is open.
Specifications
| Contacts | 2NC / 1NO |
| Rating | 300mA Resistive Load 50V |
| Channels | Dual |
| Magnet Coupling | Coded |
| Maximum Range | Typically 10mm |
| Safety Performance | Up to EN 13849-1:2008 PL’e’ |
| Operating Environment | -5° to +45°C, 0 – 95% RH |
| Environmental Protection | IP50 |
| Switch Size | 2.64 X 1.16 X 0.53 inches (67 X 29.5 X 13.5mm) |
| Actuator Size | 2.64 X 1.16 X 0.53 inches (67 X 29.5 X 13.5mm) |
| Lead Length | 78.74 inches approx. (2m approx.) |
| Combined Weight | 0.19 lbs approx. (85g approx.) |
| Conforms to Standards | BS EN 1088:1995+A2:2008 Safety of machinery – Interlocks |
