LED Mini Signs
Small LED Warning Signs
These compact backlit LED signs are ideal for use in commercial, retail, or industrial premises. Custom messages are available to suit a variety of needs, also available in single message or dual message options.
- Environmentally friendly, low power consumption, using only 3.6W each
- Available in either one-way or two-way options
- Expected lifetime of 50,000 hours, requiring no maintenance during their operational life
- Automatic or manual switching options
Description
Secret-when-lit LED Signs with Bespoke Messages
The compact LED Mini Signs can be tailored with custom-designed wording and symbols to meet specific customer requirements. Customers have the flexibility to outline or personalize the design to suit their needs. Additionally, the device can be equipped with a switchable feature, allowing for easy adjustment as required
Single message options are backlit yellow, and dual-message signs are green and red. Other colors may be available upon request.
BESPOKE MESSAGES
The wording and symbols on the compact signs can be specially created to meet the needs of the customer. The customer can specify the necessary design in the custom wording designs.
Dual message signs are red and green, while single message options are backlit yellow. On request, other colors might be available.

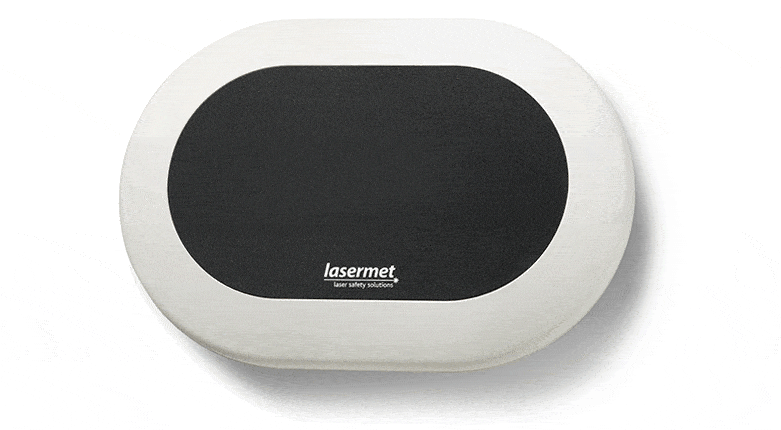

The 2-Way LED Mini Sign remains blank “secret” until activated. Once lit, it displays a message in green (safe) and red (warning), such as in the photo above. This ensures the sign stays discreet until needed, with clear, color-coded messages for different states.
The 1-Way LED Mini Sign remains blank “secret” until activated. Once lit, it displays a message in amber(notice), such as in the photo above. This ensures the sign stays discreet until needed.
Specifications
| Voltage | 24VDC |
| Power Consumption | 150mA (3.6W) |
| Weight | 0.35 lbs (160g) |
| Dimensions | 6.30w x 4.25h x 1.52d inches (160w x 108h x 38.5d mm) |
‘LASER HAZARD’ SIGNS
‘ROOM IN USE’ SIGNS
‘LAB IN USE’ SIGNS
‘OCCUPIED’ SIGNS
‘DO NOT ENTER’ SIGNS
‘NO ENTRY’ SIGNS
| Part Number | Description (Sign) | Colours Available |
|---|---|---|
| LEDS-1WR-FLB | Flasher Board, Without Overlay |  red |
| LEDS-1WB/Y | Without Overlay |  blue  yellow |
| LEDS-2WRG | Without Overlay |  red/green |
| LEDS-1W-OVERLAY-CUSTOMIZED | Customized Overlay, (1-Way) |  white red blue yellow  green |
| LEDS-2W-RIU/RIP | RIU/RIP | red/green |
| LEDS-1WY-GR | ‘Gevaar RÖNTGEN’ (German) | yellow |
| LEDS-2W-GLA | ‘Gevaar Laser Aan’ (German) | red/green |
| LEDS-1W-NWG-J | You are not wearing goggles (Japan) | white red blue yellow green |
| LEDS-2W-XR-J | X-Ray (2-Way) (Japan) | red/green |
| LEDS-L-1WY | Laser Warning Sign | yellow |
| LEDS-L-2W | Laser Warning Sign | red/green |
| LEDS-L-1W-G | ‘Achtung Laser An’ (German) | yellow |
| LEDS-L-2W-G | Laser Warning Sign (German) | red/green |
| LEDS-BH-1WY | Biohazard | white red blue yellow green |
| LEDS-BH-2W | Biohazard | red/green |
| LEDS-NE-1WR | No Entry | red |
| LEDS-DNE-1WY | Do Not Enter | yellow |
| LEDS-DNE-2W | Do Not Enter | red/green |
| LEDS-IB-1WY | LED Ion Beam | yellow |
| LEDS-IB-2W | LED Ion Beam | red/green |
| LEDS-IGR-1WY | LED Ionizing Radiation | yellow |
| LEDS-IGR-2W | LED Ionizing Radiation | red/green |
| LEDS-LIU-1WY | Lab In Use | yellow |
| LEDS-LIU-2W | Lab In Use | red/green |
| LEDS-LCA-1WY | Laser Controlled Area | yellow |
| LEDS-LOP-1WR | Laser Operational | red |
| LEDS-LPO-1WY | Laser Power On | yellow |
| LEDS-MH-1WY | Magnetic Field | yellow |
| LEDS-MH-2W | Magnetic Field | red/green |
| LEDS-NWG-1WB | `You are not wearing goggles` (static) | white red blue yellow green |
| LEDS-NWG-1WB-FL | `You are not wearing goggles` (flashing) | blue |
| LEDS-OC-1WY | Occupied | yellow |
| LEDS-OC-2W | Occupied | red/green |
| LEDS-RIU-1WY | Room In Use | yellow |
| LEDS-RIU-2W | Room In Use | red/green |
| LEDS-XR-1WY | X-Ray Warning Sign | yellow |
| LEDS-XR-2W | X-Ray Warning Sign | red/green |
| LEDS-XR-1W-G | ‘Achtung! Röntgenstrahlung’ (German) | yellow |
| LEDS-XR-2W-G | X-Ray Warning Sign (German) | red/green |
Power Supply and Switch for Signs
Lasermet provide a 24V DC Power Supply and Switch for manual operation of the switching messages.
It serves dual purposes as a manual switch and power supply unit.
