Laser Castle Lite
Self-build Laser Safety Enclosure

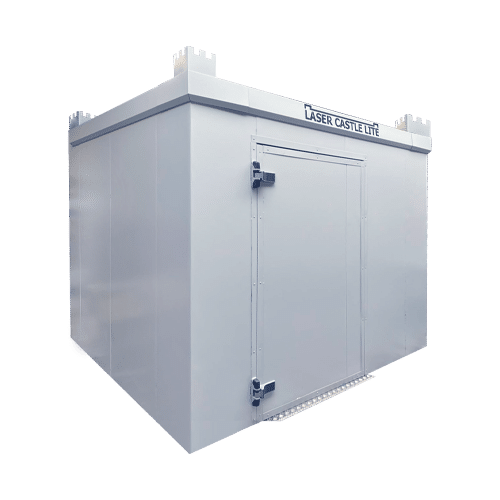

The Laser Castle Lite is a self-build miniature version of Lasermet’s Laser Castle Cabin. The Laser Castle Lite is a low-cost modular enclosure that is easy to build and deploy on site.
- Ideal for hand-held lasers and small laser robots
- Interlock® ready
- Low-cost modular safety solution
- Self-assembly
Description
Laser Castle Solution made Portable
The Laser Castle Lite is built from the same laser blocking material as the standard Laser Castle cabins – keeping workers safe by preventing the escape of laser radiation. Where the Laser Castle is a custom-built design for permanent installations, the Laser Castle Lite is a portable modular self-build enclosure which can be rapidly deployed and re-deployed on site.
The Laser Castle Lite is ideal for housing small laser welding operations, including laser robots, that need to be contained as they use Class 4 lasers.

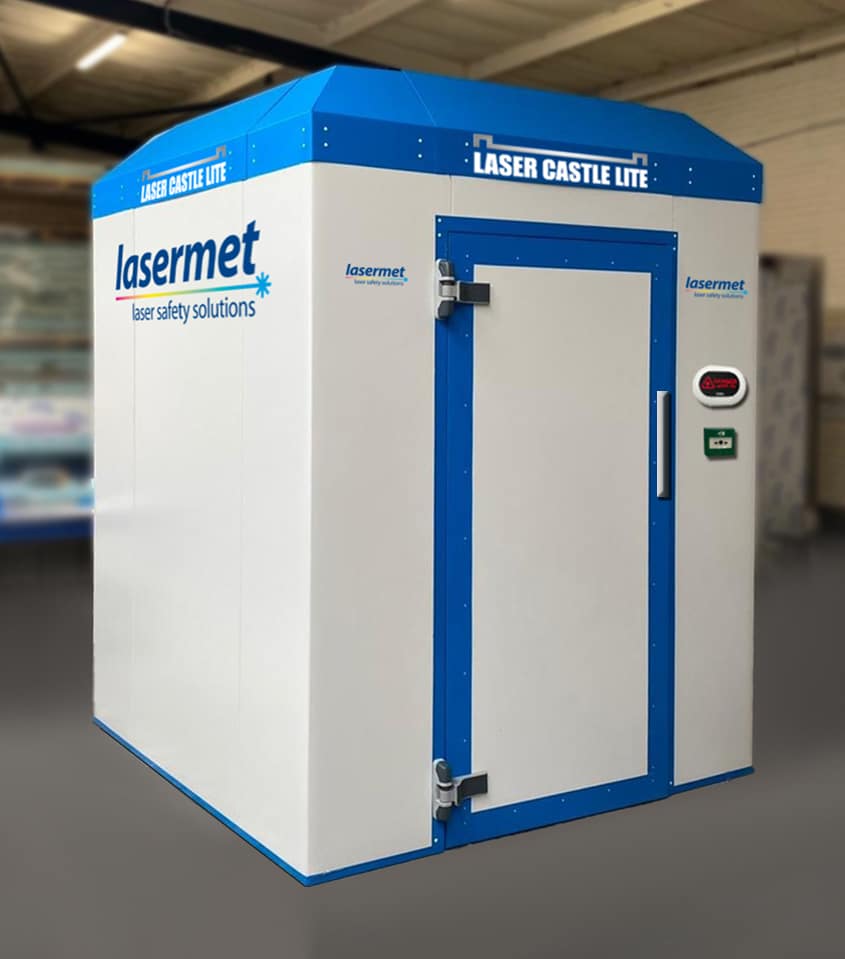

The standard Laser Castle Lite enclosure comes with a manually-operated single door and an open roof for ventilation.
INTERLOCK® OPTIONS
The Laser Castle Lite comes with an Interlock® upgrade option complete with safety interlock switches, dual-message LED warning sign, emergency stops, and door maglock – all linked to an Interlock® Controller.
Specifications
PEL RATINGS FOR LASER CASTLE LITE PASSIVE GUARDING PANELS
| Panel Thickness | Irradiated Area | PEL (T3) 10 S | PEL (T2) 100 S |
| 50mm | 4 mm² | 150 MW/m² | 87 MW/m² |
| 2000 mm² | 3.1 MW/m² | 1.7 MW/m² |
DIMENSIONS

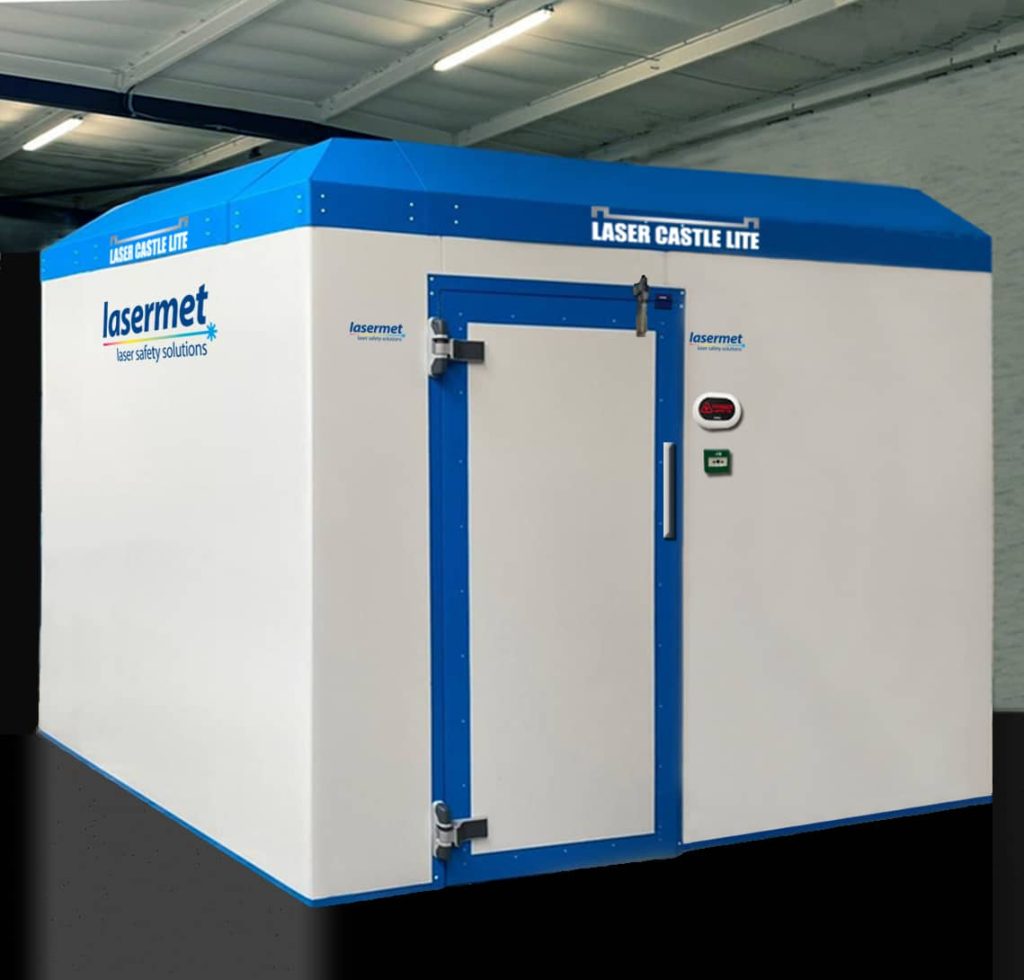

Laser Castle Lite cabins are 7.87ft high and standard sizes are:
- 6.56 x 6.56 ft
- 6.56 x 9.84 ft
- 9.84 x 9.84 ft

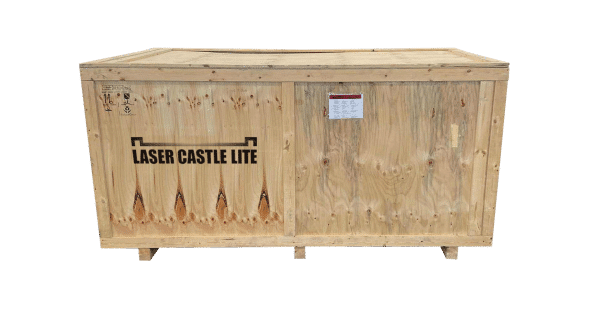

The Laser Castle Lite comes flat-packed in a single crate containing all needed parts, including interlocks, doors, and roof panels.
Shipped to your location for maximum convenience, and installed in a few hours.
CRATE DIMENSIONS
8.2 x 4.1 x 3.61 ft (L x W x H)
BUILD GUIDE
Check out this video walkthrough to set up your own Laser Castle Lite in an hour or less.
Ordering Options
In addition to the above mentioned standard size options, additional kits can be ordered for added functionality.
| Product | Inclusions |
| Laser Castle Lite | Standard Passive Guarding Cabin with no interlocks |
| Laser Castle Lite with Interlock® System | Standard Passive Guarding Cabin with ICS-SOLO Interlock® Controller, door maglock, door interlock switch, LED warning sign, emergency stop buttons |
| Laser Castle Lite with ALF Helmet and Interlock® System | Standard Passive Guarding Cabin with ICS-7-ALF or ICS-SOLO Interlock® Controller, Single or Dual ALF Helmet, door maglock, door interlock switch, LED warning sign, emergency stop buttons |
Additional information
| Dimensions | 2 x 2 x 2.4m |
|---|
