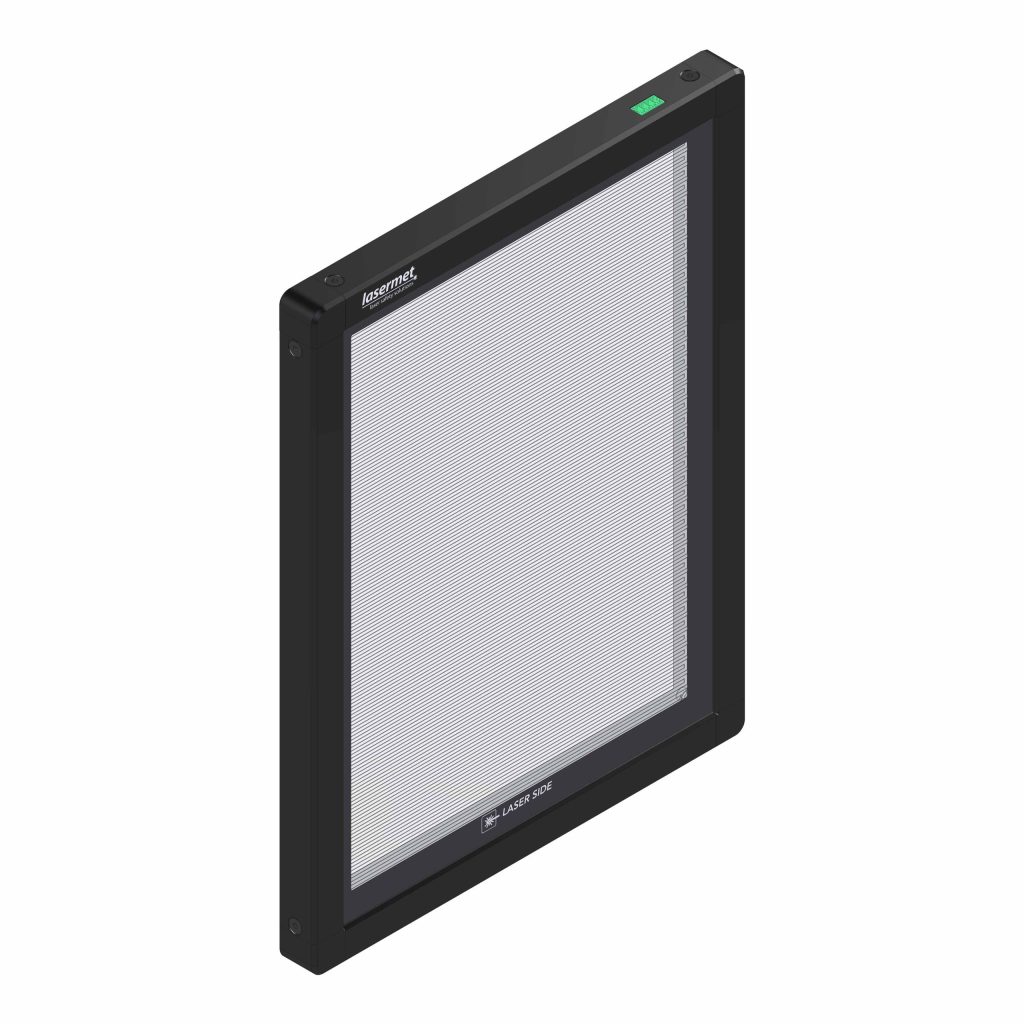

Glaser Castle Window

Passive Laser Safety Window

Glaser Castle Window enables a person to see inside a laser enclosure while being protected from laser radiation and provides protection with minimum inconvenience.

Description

Passive Laser Filter Safety Window

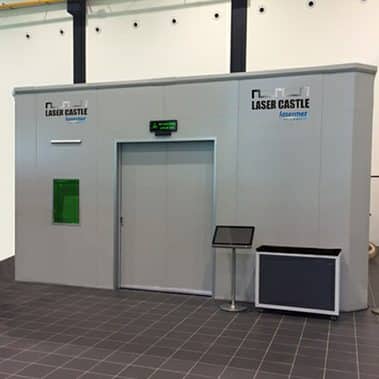

Glaser Castle Window is a passive laser safety window that can be integrated to Lasermet’s Laser Castle or any appropriate sized laser safety enclosure.

These passive laser safety window protects people outside a laser enclosure from laser radiation or stray laser beams while simultaneously allowing a person to view inside a laser enclosure.

Room sized enclosure, customizable size laser enclosure.
Windows installed on Double Doors
Viewing window to the side of a sliding door

Specifications

Wavelength (nm)EN 12254: 2010 + AC:2011
180 – 315D AB8 + IR AB3
>315 – 380D AB5 + IR AB6 + M AB6Y
915 -1180D AB5 + IR AB7
2720 – 2940D AB2
5000 – 11000D AB2 + I AB3

Ordering Options

The size can be customizable depending on the customers needs.

A4 Size10.87 x 14.49 inch
(8.27″ x 11.69″ viewing area)
Full Size32.68 x 24.8 inch
(30.32″ x 22.44″ viewing area)
Active guard, Active guard window, laser safety window, laser viewing window

Glaser Jailer Window

Active Window for the Laser Castle

For high-powered laser applications, this window comes in an Active Guarding version, able to shut off the laser in the event of a misfire.
